qsml-4h
Selling Points

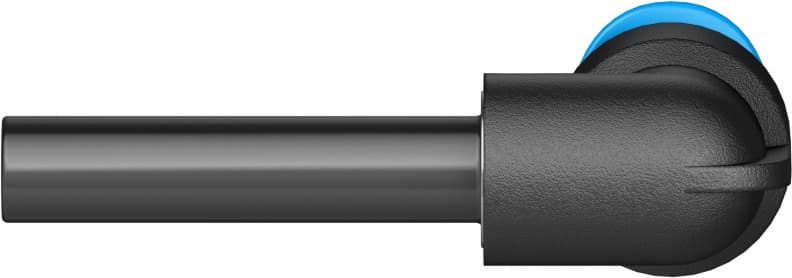

- 1The Festo QSML-4H push-in L-connector features a nominal size of 1.9 mm, making it suitable for miniaturized pneumatic systems.
- 2This connector operates within a wide temperature range of -10 °C to 80 °C, ensuring reliability in various environmental conditions.
- 3With an operating pressure range of -0.95 to 6 bar, the QSML-4H is versatile for different pneumatic applications, including compressed air and vacuum systems.
- 4The connector is designed with a push-pull principle and an L-shape design, facilitating easy installation and secure connections.
- 5Made from RoHS-compliant materials (PBT for housing and POM for release ring), the QSML-4H ensures compliance with environmental regulations while maintaining high performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.9mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 1.7g |
Pneumatic connection 1 | Push-in sleeve ? 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153347 |
Specifications may be subject to change without notice
