Product Model
qsmll-1/8-4
Selling Points

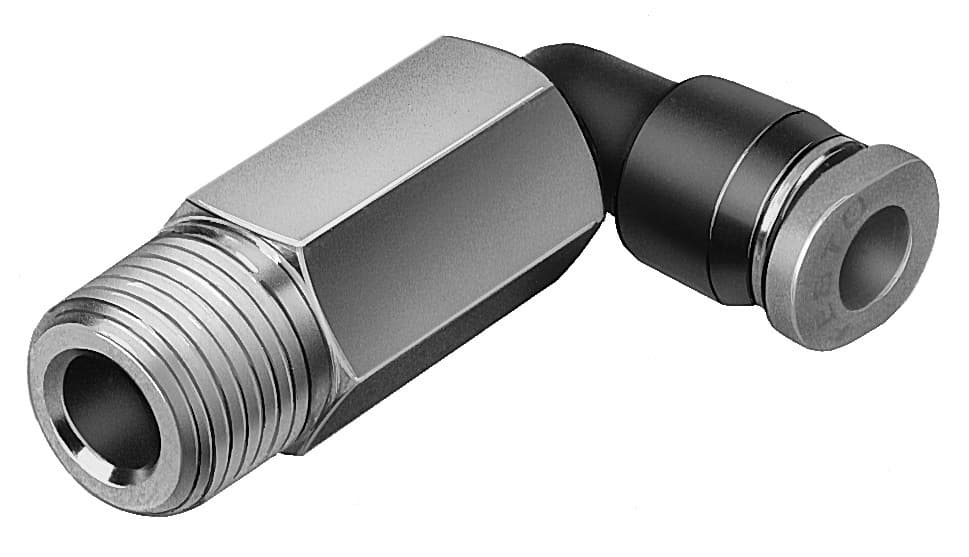

- 1The Festo QSML-1/8-4 push-in L-fitting is designed for mini pneumatic systems, featuring a nominal size of 2.5 mm and a male thread of R1/8.
- 2This fitting is 360° orientable, allowing for flexible installation in any position, making it ideal for various pneumatic applications.
- 3The QSML-1/8-4 uses a coating seal on the screw-in stud, ensuring reliable and durable performance in compressed air systems.
- 4The fitting operates within a temperature range of -10°C to 80°C and supports pressures up to 6 bar, making it suitable for a wide range of industrial environments.
- 5Constructed from PBT material, this push-in fitting is corrosion-resistant and compliant with RoHS regulations, ensuring long-lasting performance and environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 13g | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153340 |
Specifications may be subject to change without notice
