Product Model
qsmtl-g1/8-4
Selling Points

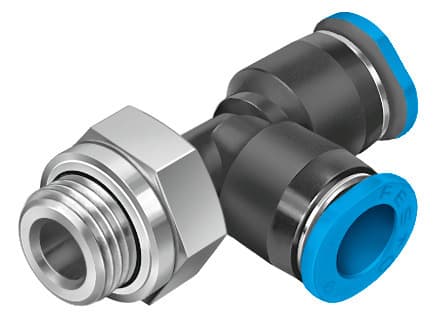

- 1The Festo QSMTL-G1/8-4 push-in T-fitting is designed with a mini size, making it perfect for compact pneumatic systems. Its T-shape and additional push-in connector ensure easy and secure connections.
- 2This T-fitting features a male thread with an external hexagon, allowing for precise and rotatable connections. It is ideal for applications requiring high precision and reliability.
- 3The QSMTL-G1/8-4 is constructed from high-quality materials, including nickel-plated brass for the threaded portion and plastic for the body. This ensures durability and resistance to corrosion.
- 4The operating pressure range of the QSMTL-G1/8-4 is -0.95 to 10 bar, making it suitable for a variety of pneumatic applications. It can operate within a temperature range of -10 to 80°C.
- 5The Festo QSMTL-G1/8-4 push-in T-fitting is part of the QSMTL series, known for its reliability and ease of use. It is a popular choice among professionals for its performance and versatility in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.4mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape, additional push-in connector, lengthwise | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 10g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 13 |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186274 |
