Product Model
qspkg10-4
Selling Points

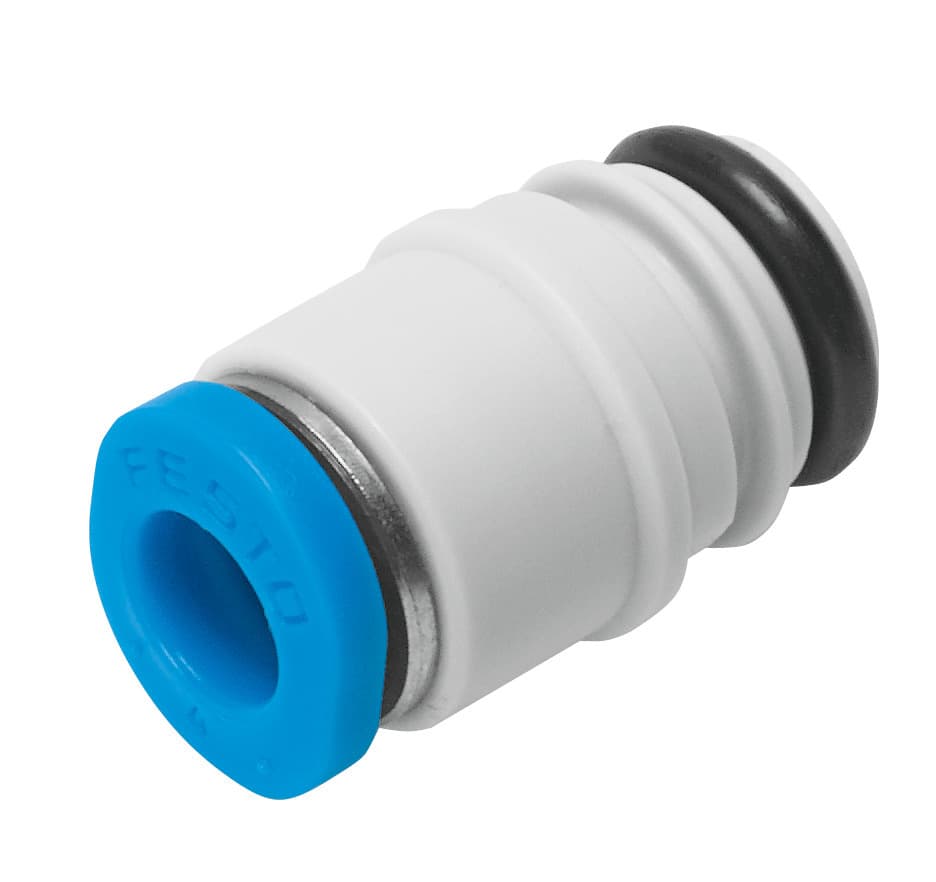

- 1The Festo QSPKG10-4 pneumatic cartridge is designed with a straight shape and an O-ring seal on the screwed plug, ensuring reliable and leak-free operation.
- 2This cartridge supports operating pressures from -0.95 bar to 10 bar, making it suitable for a wide range of pneumatic applications.
- 3The QSPKG10-4 is made from RoHS-compliant materials, including PA-reinforced housing, POM releasing ring, and NBR tubing seal for enhanced durability and corrosion resistance.
- 4The cartridge operates within an ambient temperature range of -5 °C to 60 °C, ensuring consistent performance in various environments.
- 5With its compact size (nominal size: 2.3 mm) and push-pull principle, the QSPKG10-4 is easy to install and use, making it a versatile choice for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 1.4g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132622 |
Specifications may be subject to change without notice
