Product Model

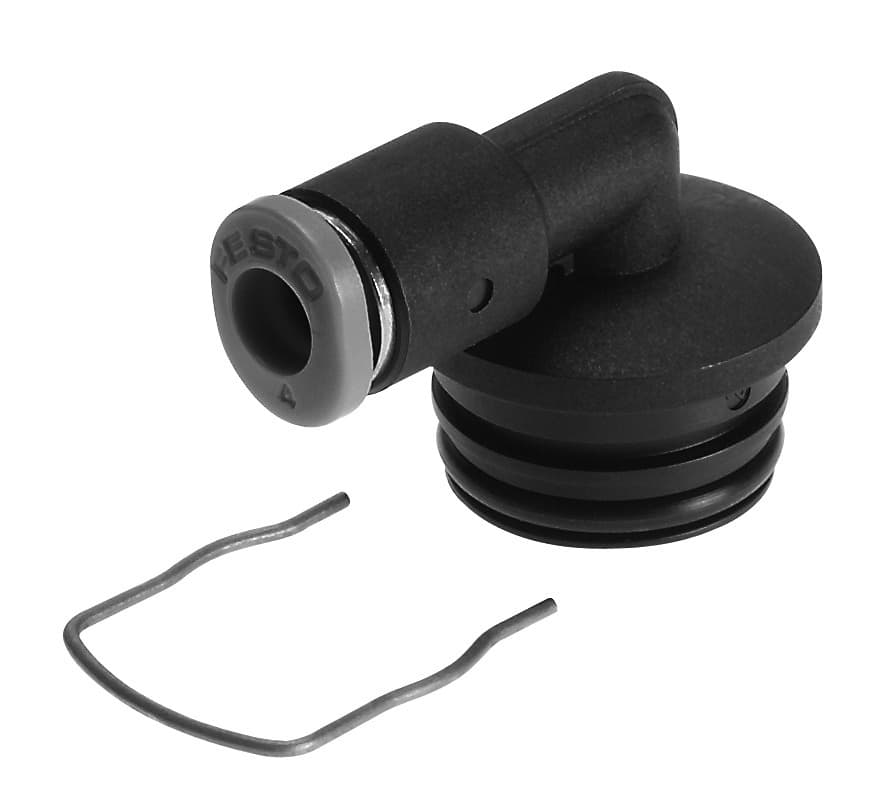

qsplk18-1/4-u
Selling Points
- 1The Festo QSPLK18-1/4-U is designed to operate under pressures ranging from -13.8 to 145 PSI, making it suitable for demanding industrial environments.
- 2This fitting can withstand operating temperatures between -5°C and 60°C, ensuring consistent performance in various temperature conditions.
- 3The QSPLK18-1/4-U features a free-mounting type, allowing for quick and effortless installation in pneumatic systems.
- 4Made from POM (Polyoxymethylene), a high-quality plastic material known for its durability and resistance to wear and tear.
- 5This cartridge is designed for use with 1/4 OD tubing and is part of the QSP-18 series, offering a range of configurations to meet diverse pneumatic connection needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.6mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 3.8g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132176 |
Specifications may be subject to change without notice
