Product Model
qsr-g1/8-8
Selling Points

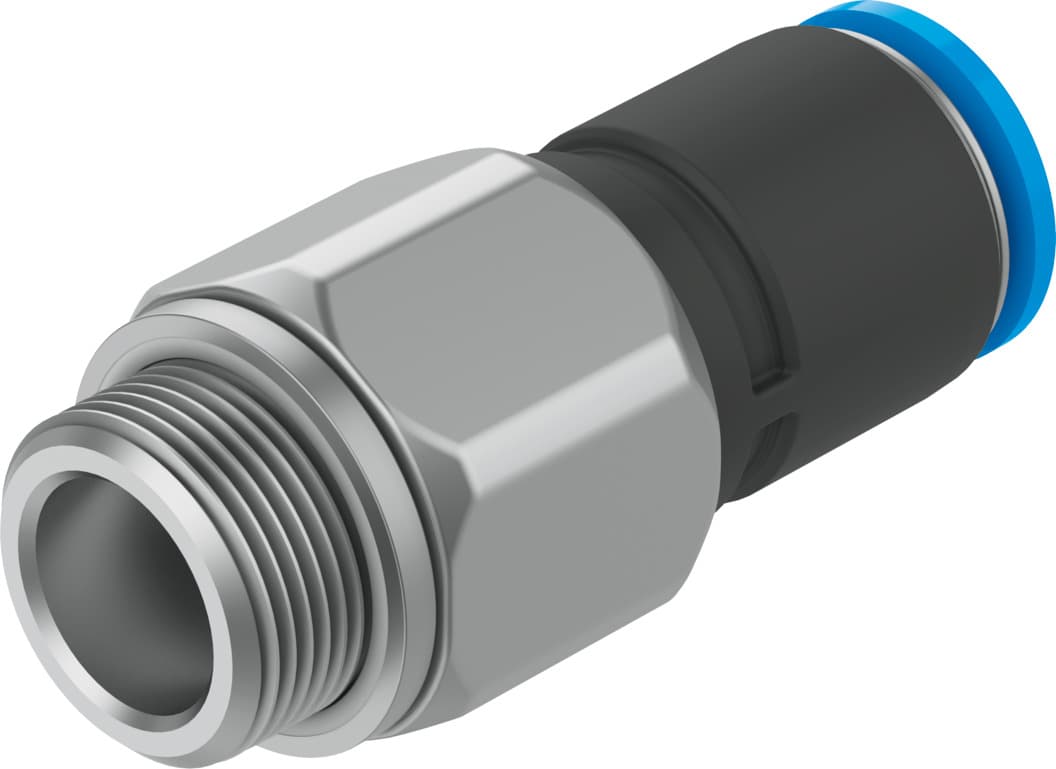

- 1The Festo QSR-G1/8-8 rotary push-in fitting offers a reliable and efficient pneumatic connection, ensuring smooth operation in various applications.
- 2With a temperature range of -0.95 to 6 bar, this fitting is suitable for a wide range of compressed air applications, including industrial automation and machinery.
- 3The QSR-G1/8-8 features a push-pull principle, making it easy to install and maintain, reducing downtime and increasing productivity.
- 4The fitting is designed with a sealing ring, providing a secure seal against compressed air, ensuring consistent performance and minimizing leaks.
- 5Made from high-quality materials such as nickel-plated brass and PBT, this fitting is RoHS-compliant and resistant to corrosion, ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Max. rotational speed | 400rpm |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Max. radial torque | 0.015Nm |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 33g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186279 |
Specifications may be subject to change without notice
