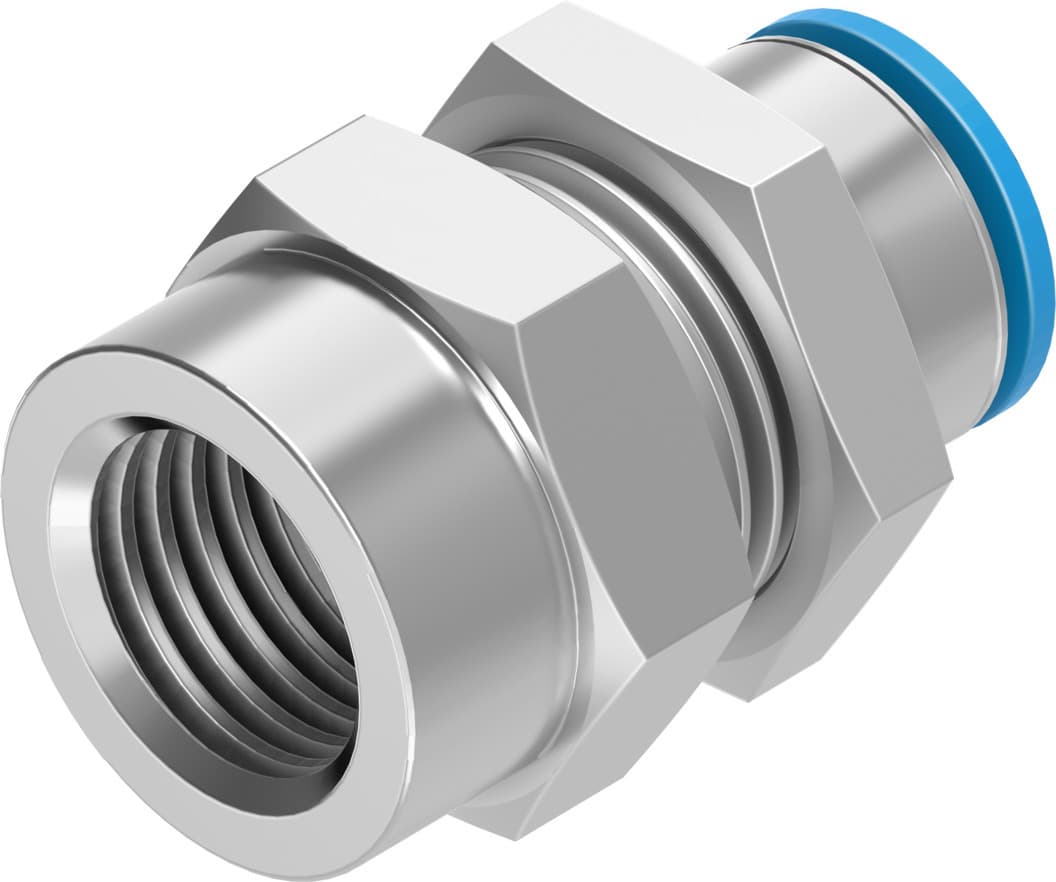

Festo QSSF-1/2-16-B Bulkhead Push-In Fitting - High-Quality Pneumatic Connection

Selling Points

1Reliable Pneumatic Connection: The QSSF-1/2-16-B offers a secure push-pull principle for consistent performance.
2Wide Operating Pressure Range: Compatible with operating pressures from -0.95 to 6 bar, ensuring versatility in various applications.
3Corrosion-Resistant Materials: Constructed with brass and nickel-plated components, providing low corrosion stress (CRC 1).
4Versatile Mounting Options: Available in external hexagon sizes (29 mm and 32 mm) for flexible mounting.
5Compact Design: Weighing only 116 grams, making it ideal for space-constrained environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	15mm
Mounting position	Any	Design	Bulkhead
Pack size	1	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Nominal tightening torque	26Nm
Tolerance for nominal tightening torque	± 20%	Product weight	116g
Type of mounting	External hexagon, AF 29 External hexagon, AF 32	Pneumatic connection 1	Internal thread G1/2
Pneumatic connection 2	for pneumatic tubing outside diameter 16 mm	Releasing ring color	Blue
Note on materials	RoHS-compliant	Housing material	Brass, nickel-plated
Releasing ring material	POM	Nut material	Brass, nickel-plated
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	190657

Specifications may be subject to change without notice
