FestoPneumatic connectors
Product Model

qst-10-6

Manufacturer

Festo

Category

Pneumatic connectors

Product ID

901

In Stock
Last updated: 2025/4/30
View Specifications

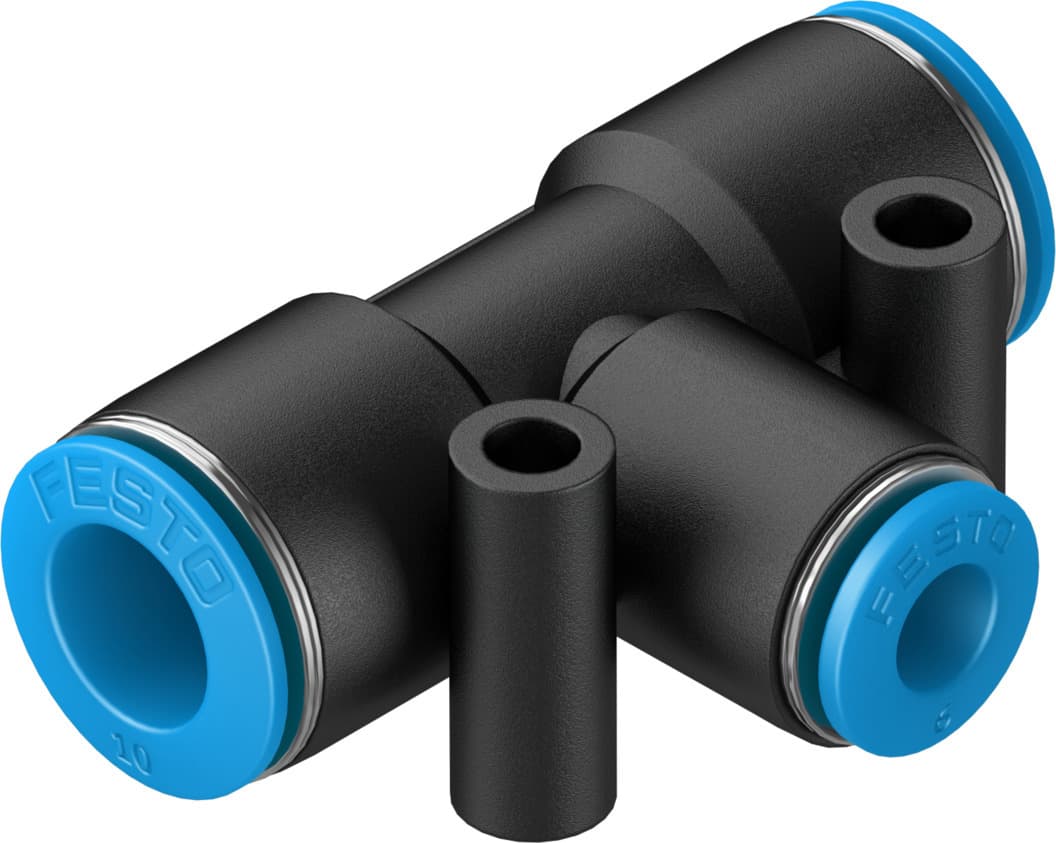

Festo qst-10-6

Selling Points

  • 1The QST-10-6 is made from durable Polybutylene Terephthalate (PBT) and features a Polyoxymethylene (POM) release ring, ensuring long-lasting performance and resistance to corrosion.
  • 2This T-shaped connector offers 1 inlet and 2 outlets, making it ideal for various pneumatic applications. It supports tubing diameters of 10 mm and 6 mm, providing flexibility in setup.
  • 3The QST-10-6 operates within a broad temperature range of -10°C to 80°C and supports pressures from -0.95 bar to 6 bar, with temperature-dependent operating pressure up to 14 bar.
  • 4Designed with a push-pull principle, this connector is easy to install and requires minimal effort, thanks to its optimized bending radius.
  • 5The QST-10-6 meets ISO 8573-1:2010 standards and is RoHS compliant, ensuring it meets stringent environmental and safety regulations.
Product Details
qst-10-6
Festo

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Size
Standard
Nominal width
3.7mm
Mounting position
Any
Design
T-shape
Pack size
10
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Ambient temperature
-10°C 80°C
Product weight
22g
No. of outlets
2
No. of supply lines
1
Pneumatic connection 1
for pneumatic tubing outside diameter 10 mm
Pneumatic connection 2
for pneumatic tubing outside diameter 6 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Housing material
PBT
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
130614

Specifications may be subject to change without notice
