Product Model
qsy-12-10-20
Selling Points

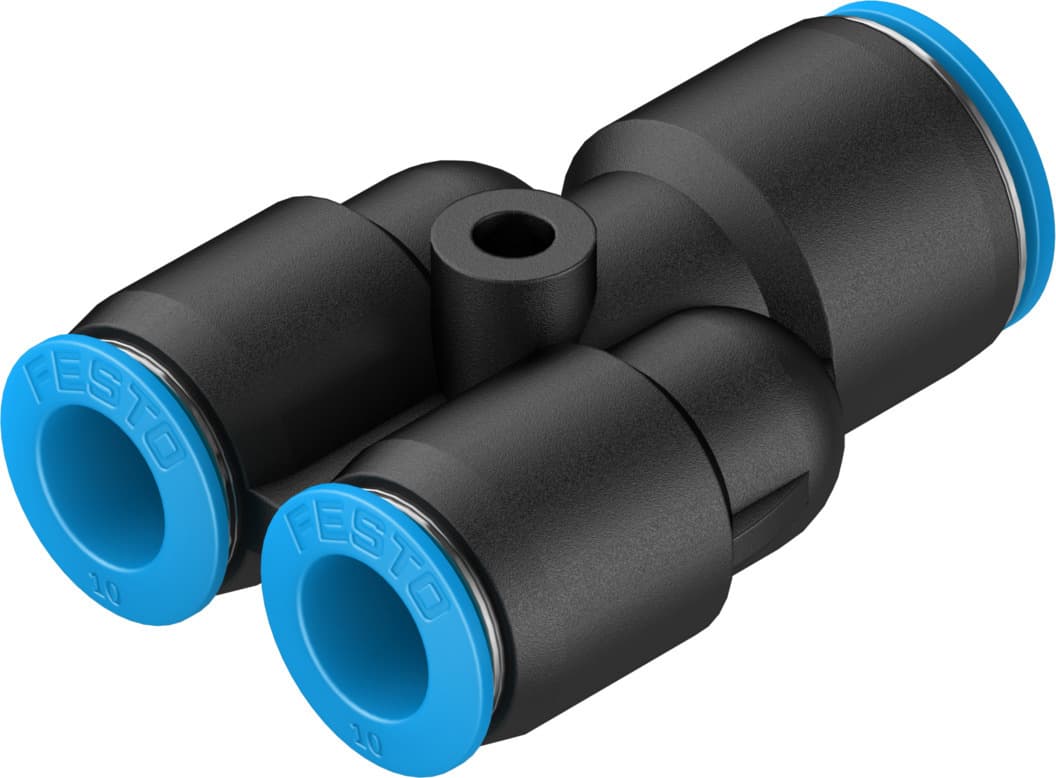

- 1The Festo QSY-12-10-20 push-in Y-connector is designed with a standard size and nominal size of 5.8 mm, making it versatile for various applications.
- 2This connector operates on a reliable push-pull principle, ensuring easy and secure connections in industrial settings.
- 3With a corrosion resistance classification of CRC 1 – Low corrosion stress, this connector is suitable for use in environments where corrosion is a concern.
- 4The QSY-12-10-20 is designed to operate with compressed air in accordance with ISO8573-1:2010 and water, making it versatile for different industrial mediums.
- 5This connector is suitable for maritime use, with a maritime classification available upon request, ensuring it meets the necessary standards for marine environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.8mm |
Mounting position | Any | Design | Y-shape |
Pack size | 20 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 30g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130815 |
Specifications may be subject to change without notice
