Product Model

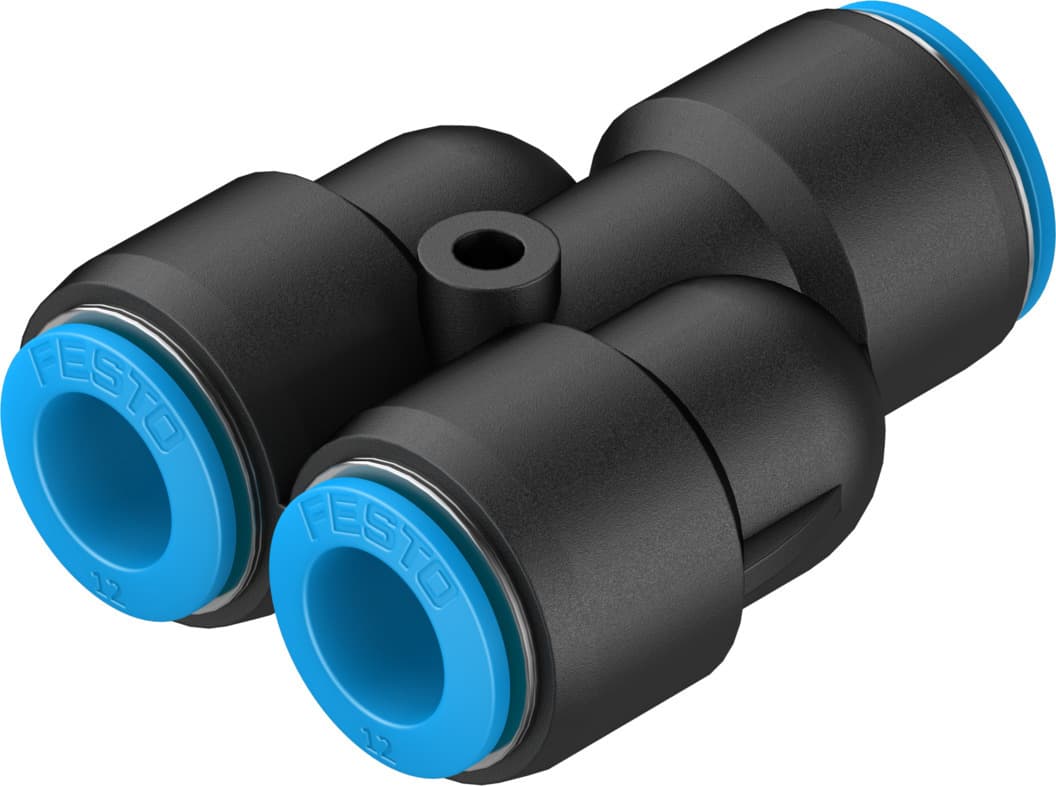

qsy-16-12
Selling Points
- 1Standard Size and Compatibility: Fits standard tubing with 16 mm and 12 mm outer diameters.
- 2Low Corrosion Stress: Classified as CRC 1, ensuring minimal corrosion impact.
- 3Operating Pressure Range: Handles up to 6 bar of compressed air and 0.6 MPa of water.
- 4Push-Pull Principle: Easy installation and removal with a push-pull mechanism.
- 5RoHS Compliant: Meets environmental standards for safe and sustainable use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7mm |
Mounting position | Any | Design | Y-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 48g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 16 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 190708 |
Specifications may be subject to change without notice
