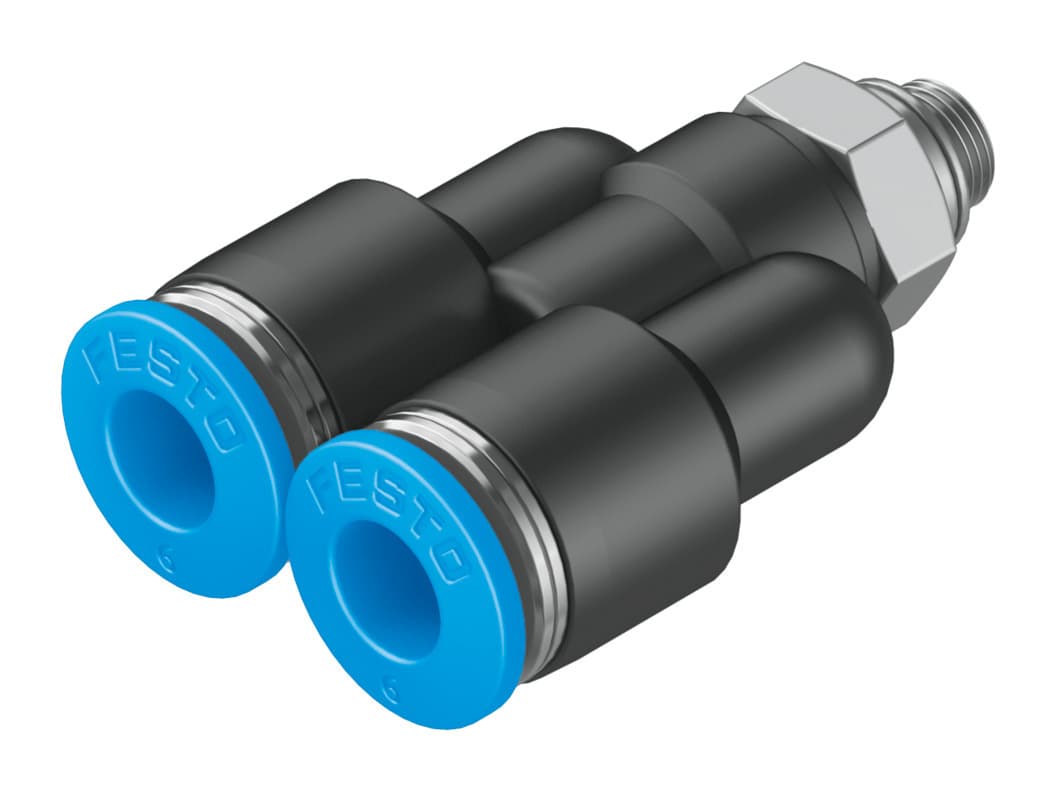

Product Model
qsy-m5-6
Selling Points
- 12.4MM nominal size for precise pneumatic connections.
- 2Ensures reliable operation with a sealing ring on the screwed plug.
- 3Flexible installation options for easy integration into various systems.
- 4Constructed with nickel-plated brass and high-alloy stainless steel for long-lasting performance.
- 5Compatible with compressed air to ISO 8573-1:2010 and water up to 0.6 MPa at 50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.4mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Y-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 13g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190674 |
Specifications may be subject to change without notice
