Product Model

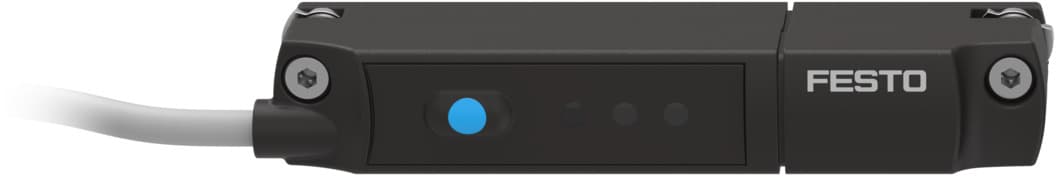

sdap-mhs-m50-1l-a-e-0.3-m8
Selling Points
- 1Measures position with high accuracy over a range of 0-50mm.
- 2Suitable for energy chains and robot applications with high bending strength and torsion resistance.
- 3Provides a 4-20mA analog output for easy integration into various control systems.
- 4Compliant with EU EMC and RoHS directives, ensuring reliable operation in demanding environments.
- 5Compact design with a cable length of 0.3m, ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Symbol | 00995389 |
Certification | RCM compliance mark c UL us - Listed (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant Halogen-free |
Measured variable | Position | Measuring principle | Magnetic Hall |
Sensing range | 0μm 50000μm | Ambient temperature | -25°C 70°C |
Typical sampling interval | 1ms | Max. travel speed | 3m/s |
Displacement resolution | 0.05mm | Analog output | 4 - 20 mA |
Sensitivity | 0.32mA/mm | Typical linearity error | ±0.25 mm |
Max. load resistance of current output | 500Ohm | Short-circuit protection | yes |
Overload protection | Available | DC operating voltage range | 15V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable with plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991171 | Connection outlet orientation | Longitudinal |
Material of pin contacts | Copper alloy, gold-plated | Connector cable test conditions | Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
Cable length | 0.3m | Cable characteristic | Suitable for energy chains/robot applications |
Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Screwed tightly Can be inserted in slot from above | Mounting position | Any |
Product weight | 19g | Housing material | Brass, nickel-plated PA-reinforced Polyester High-alloy stainless steel |
Material of union nut | Brass, nickel-plated | Film material | Polyester |
Ready status indication | LED green | Status indicator | LED red |
Ambient temperature with flexible cable installation | -20°C 70°C | Degree of protection | IP65 IP68 |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8050120 |
Specifications may be subject to change without notice
