Product Model

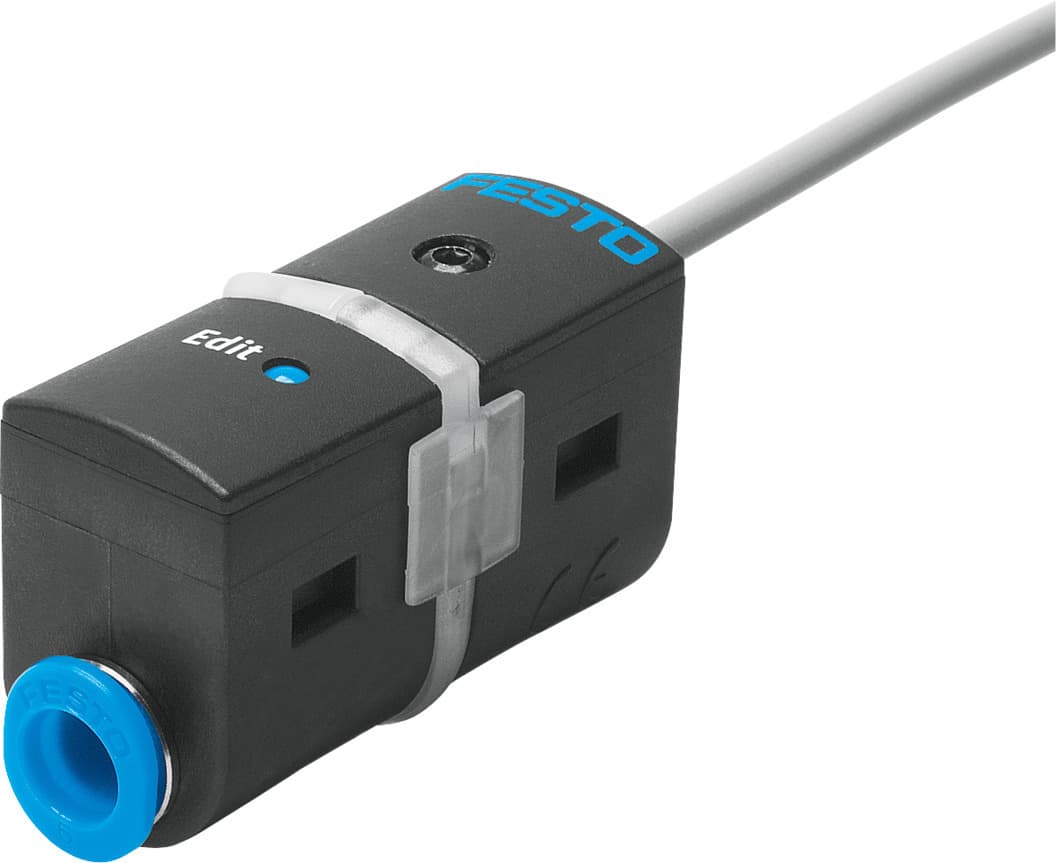

sde5-d10-o-q6-n-k
Selling Points
- 1High Accuracy: ±0.3% FS repetition accuracy and ±0.05% FS/K temperature coefficient.
- 2Compliant Standards: Meets EU EMC Directive, EU RoHS Directive, and UK instructions for EMC.
- 3Wide Operating Range: Measures relative pressure from 0 to 10 bar with a threshold value and fixed hysteresis.
- 4Versatile Connectivity: 3-wire electrical connection, cable length up to 2.5 meters, and pneumatic connection QS-6.
- 5Durable Design: IP40 protection class and moderate corrosion stress resistance class CRC2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00992256 | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | 0bar |
Pressure measuring range end value | 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | NPN |
Switching function | Threshold value with fixed hysteresis | Switching element function | N/O contact |
Max. output current | 100mA | Short-circuit protection | yes |
DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection | 3-wire Cable as per EN 60947-5-2 | Cable length | 2.5m |
Type of mounting | With accessories | Mounting position | Any |
Pneumatic connection | QS-6 | Product weight | 47g |
Housing material | PA POM | Switching status indication | LED yellow |
Setting range threshold value | 0% 100% | Degree of protection | IP40 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 567469 |
