Product Model

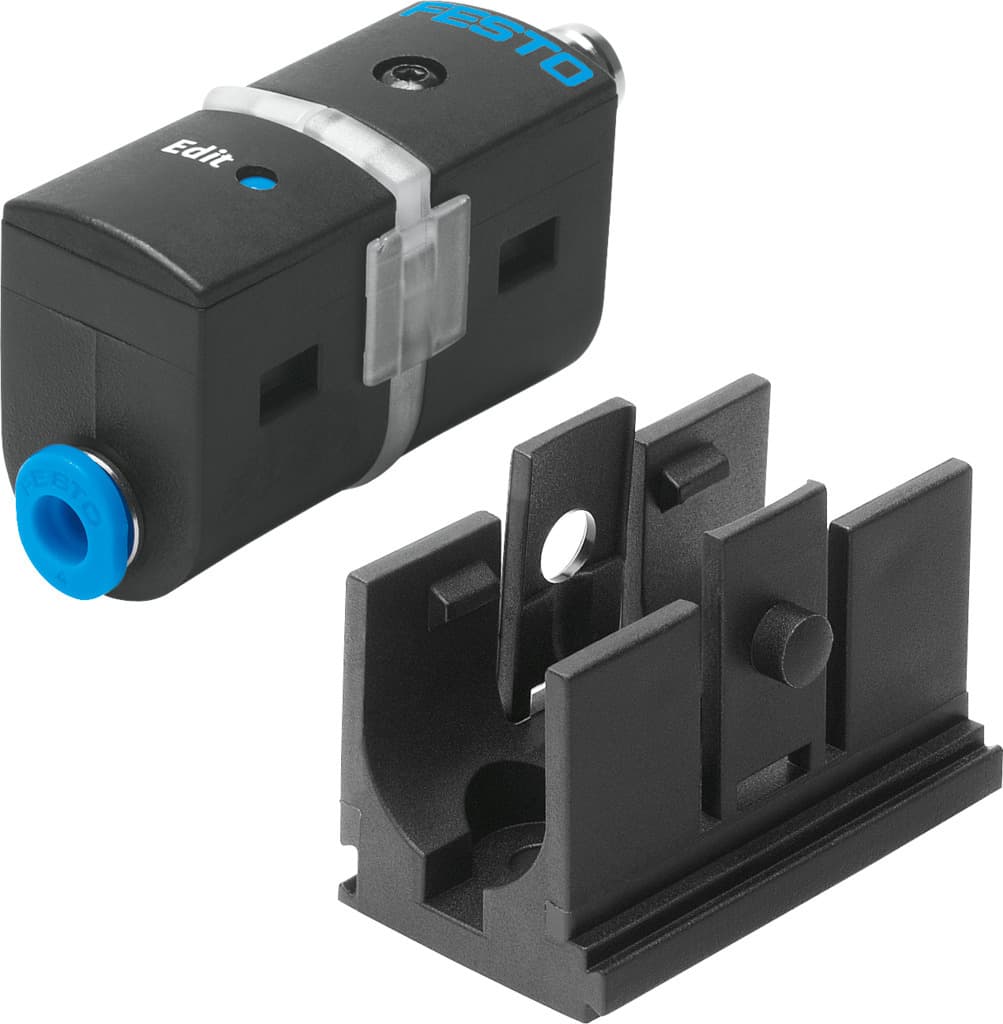

sde5-d10-o-t14e-p-m8
Selling Points
- 1Reliable Performance: With a service life of 4.8 million cycles and robust vibration and shock resistance, the SDE5-D10-O-T14E-P-M8 ensures consistent operation in demanding environments.
- 2Cost-Effective Solution: Designed as a cost-effective alternative for simple pressure monitoring tasks, this sensor provides instant pressure information without compromising on quality.
- 3Versatile Connectivity: Available in both plug and cable versions, the SDE5-D10-O-T14E-P-M8 offers flexible electrical connections including M8 plug and 3-wire cable options.
- 4Compliant with Directives: Meets EU EMC and RoHS directives, ensuring compliance with stringent safety and environmental standards.
- 5Easy Installation: Includes a linkable wall bracket for easy mounting, making it simple to integrate into various monitoring systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991164 | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | 0bar |
Pressure measuring range end value | 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | PNP |
Switching function | Threshold value with fixed hysteresis | Switching element function | N/O contact |
Max. output current | 100mA | Short-circuit protection | yes |
DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection | 3-pin M8x1 Plug as per EN 60947-5-2 Round design | Type of mounting | With accessories |
Mounting position | Any | Pneumatic connection | QS-1/4 |
Product weight | 19g | Housing material | PA POM |
Switching status indication | LED yellow | Setting range threshold value | 0% 100% |
Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 567468 |
