Product Model

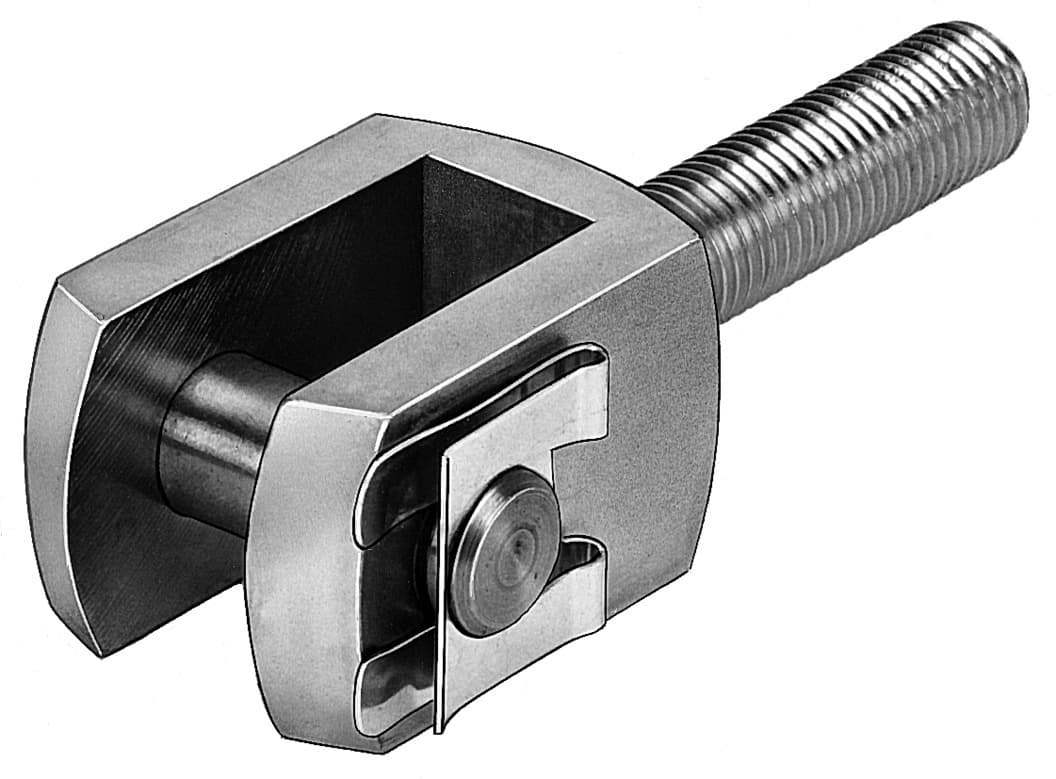

sga-m16
Selling Points
- 1Adjustable Mounting Position: Install the rod clevis in any arbitrary position for maximum flexibility.
- 2Low Corrosion Stress: Built with corrosion-resistant materials, ensuring long-lasting performance in harsh environments.
- 3High Precision: Features radial deviation ±5 mm and angle compensation ±120 degrees for precise alignment.
- 4RoHS Compliant: Meets RoHS standards, ensuring compliance with environmental regulations.
- 5Durable Construction: Made from copper-free and PTFE-free materials, including zinc-plated steel bolts and spring steel lock.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | M16 | Radial deviation +/- | 5mm |
Angle compensator +/- | 120deg | Mounting position | Any |
Threaded connection | External thread M16 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -40°C 150°C |
Product weight | 512g | Note on materials | RoHS-compliant |
Bolt material | Steel, galvanized | Material of rod eye | Steel Galvanized |
Fuse material | Spring steel, galvanized | Manufacturer ID | 6524 |
Specifications may be subject to change without notice
