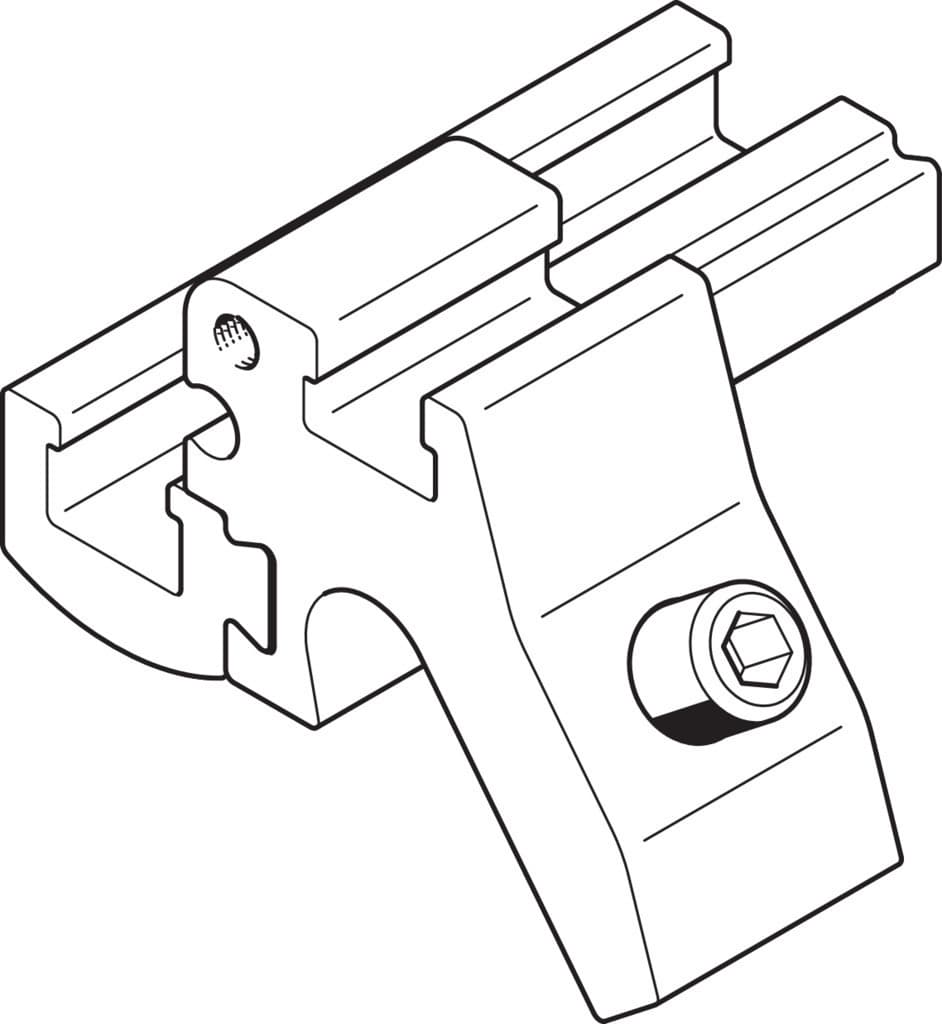

Product Model
smbz-8-125/320
Selling Points
- 1The Festo SMBZ-8-125/320 is designed for tie rods, offering a versatile mounting position suitable for piston diameters ranging from Ø125 to Ø320. Its corrosion resistance class (CRC) 2 ensures moderate corrosion stress, making it a reliable choice for various applications.
- 2This mounting accessory features a housing made of wrought aluminum alloy, anodized for durability, and screws made of high-alloy stainless steel for added strength and resistance to corrosion.
- 3The SMBZ-8-125/320 operates within an ambient temperature range of -40 °C to 120 °C, ensuring it can handle a variety of environmental conditions. It also requires a tightening torque of ≤0.5 Nm, making installation straightforward.
- 4The product is RoHS-compliant, meeting environmental regulations, and weighs only 14 grams, making it lightweight and easy to handle. It is also clamped for secure mounting.
- 5The SMBZ-8-125/320 is LABS (PWIS) conformity certified and meets VDMA24364-B2-L standards, ensuring it meets industry-specific requirements for quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Design | for tie rods |
Mounting position | Any | for piston ? | ?125 - ?320 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 120°C | Tightening torque | 0.5Nm |
Product weight | 14g | Type of mounting | Clamped |
Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy, anodized |
Material of screws | High-alloy stainless steel | Manufacturer ID | 537808 |
Specifications may be subject to change without notice
