Product Model

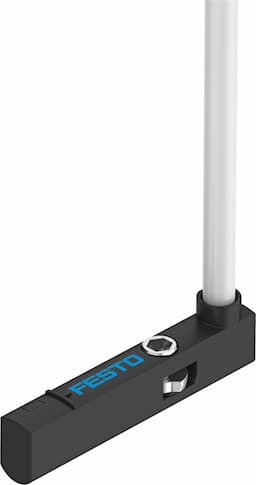

smt-10m-ps-24v-e-0,3-q-m8d
Selling Points
- 1High Accuracy and Precision: The SMT-10M-PS-24V-E-0,3-Q-M8D proximity sensor offers a high switching output repetition accuracy of ±0.1 mm, ensuring precise measurements in industrial automation applications.
- 2Oil Resistance: This sensor is specially designed to be oil-resistant, making it suitable for use in harsh environments where exposure to oils is common.
- 3Magnetic and Contactless: The sensor operates magnetoresistively, providing a contactless measurement solution that is both reliable and efficient.
- 4Wide Temperature Range: The SMT-10M-PS-24V-E-0,3-Q-M8D can operate within an ambient temperature range of -40°C to 70°C, making it versatile for various industrial settings.
- 5Compliance with Industry Standards: The sensor conforms to the EN 60947-5-2 standard and carries the RCM Mark and CE mark for EMC compliance, ensuring it meets rigorous industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Conforms to standard | EN 60947-5-2 |
Symbol | 00991153 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | Oil-resistant | Note on materials | RoHS-compliant Halogen-free |
Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -40°C 70°C |
Repetition accuracy | 0.2mm | Switching output | PNP |
Switching element function | N/O contact | On time | 1.3ms |
Switch-off time | 4.2ms 7.3ms | Max. switching frequency | 130Hz |
Max. output current | 100mA | Max. output current in mounting kits | 50mA |
Max. switching capacity DC | 2.8W | Max. switching capacity DC in mounting kits | 1.5W |
Voltage drop | 1.7V | Short-circuit protection | yes |
Overload protection | Available | Rated operating voltage DC | 24V |
DC operating voltage range | 5V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable with plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Transverse |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Cable length | 0.3m |
Cable characteristic | Suitable for energy chains/robot applications | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Screwed tightly Can be inserted in slot from above | Max. tightening torque | 0.4Nm |
Mounting position | Any | Product weight | 6.7g |
Housing material | PA-reinforced High-alloy stainless steel | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -20°C 70°C | Degree of protection | IP65 IP68 |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 551376 |
Specifications may be subject to change without notice
