Product Model

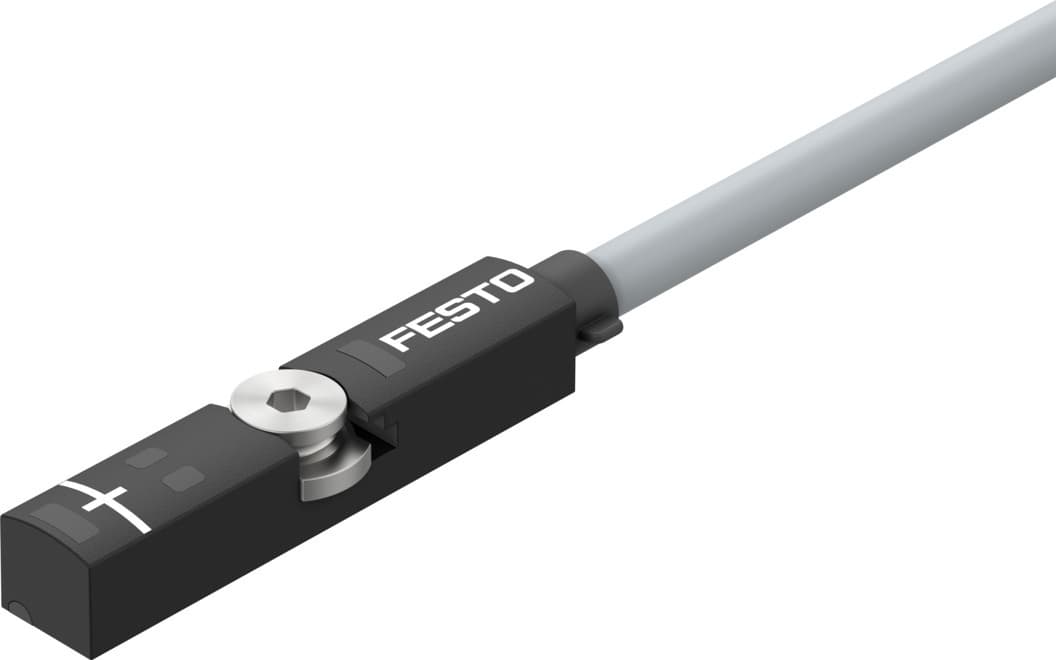

smt-8m-a-zs-24v-e-5,0-oe
Selling Points
- 1The SMT-8M-A-ZS-24V-E-5,0-OE proximity sensor offers a high repetition accuracy of 0.2 mm, ensuring precise measurements in industrial automation applications.
- 2This sensor features a magnetoresistive measuring principle, providing a non-contacting and oil-resistant design suitable for various industrial environments.
- 3The sensor operates within the range of -40°C to +70°C, making it suitable for diverse industrial applications and environments.
- 4The SMT-8M-A-ZS-24V-E-5,0-OE is compliant with RCM, cULus, and CE marks, ensuring it meets international safety and performance standards.
- 5With a switch-on time of less than 1 ms and a switching frequency of up to 180 Hz, this sensor provides fast and reliable switching performance for industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991623 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E232949 | Special features | Oil-resistant |
Note on materials | RoHS-compliant Halogen-free | Application note | https://www.festo.com/Drive-Sensor-Overview |
Measured variable | Position | Measuring principle | Magneto-resistive |
Ambient temperature | -40°C 85°C | Repetition accuracy | 0.2mm |
Switching output | Non-contact, 2-wire | Switching element function | N/O contact |
On time | 1ms | Switch-off time | 1ms |
Max. switching frequency | 180Hz | Max. output current | 80mA |
Max. output current in mounting kits | 80mA | Max. switching capacity DC | 1.9W |
Max. switching capacity DC in mounting kits | 1.5W | Voltage drop | 6V |
Short-circuit protection | yes | Overload protection | Available |
Rated operating voltage DC | 24V | DC operating voltage range | 7V 30V |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 2 |
Connection outlet orientation | Longitudinal | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
Cable length | 5m | Cable characteristic | Suitable for energy chains/robot applications |
Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Screwed tightly Can be inserted in slot from above | Max. tightening torque | 0.6Nm |
Mounting position | Any | Product weight | 57.1g |
Housing colour | Black | Housing material | PA-reinforced High-alloy stainless steel |
Switching status indication | LED yellow | Function reserve indication | LED orange |
Ambient temperature with flexible cable installation | -20°C 85°C | Degree of protection | IP65 IP68 IP69K |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8165237 |
Specifications may be subject to change without notice
