Product Model

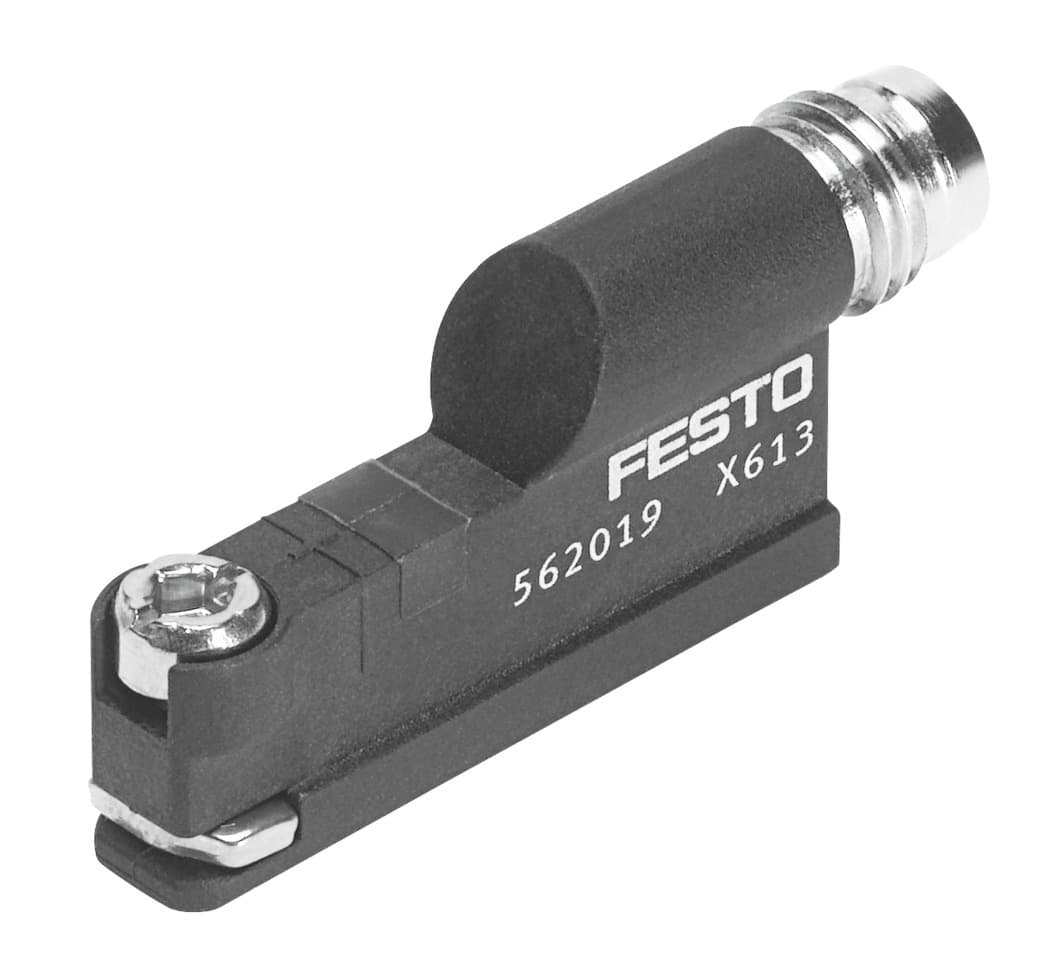

smt-8-sl-ps-led-24-b
Selling Points
- 1High Accuracy: Repetition accuracy of 0.2 mm ensures precise position measurement.
- 2Robust Design: IP65 and IP68 protection against dust and water, ensuring reliable operation in harsh environments.
- 3Easy Installation: Screw-clamped mounting in T-slot, easy to insert lengthwise.
- 4Versatile Connectivity: M8x1 A-coded plug with 3-pin connection, compatible with various drive systems.
- 5Compliance & Certifications: CE marked, compliant with EU EMC and RoHS directives, UL certified (E232949).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991153 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E232949 | Note on materials | RoHS-compliant |
Application note | Support / actuator-sensor overview "The right sensor for the actuator" | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -20°C 70°C |
Repetition accuracy | 0.2mm | Switching output | PNP |
Switching element function | N/O contact | On time | 1ms |
Switch-off time | 2ms 6ms | Max. switching frequency | 140Hz |
Max. output current | 100mA | Max. switching capacity DC | 3W |
Voltage drop | 2V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Minimum load current | 0.1mA | Residual current | 0.002mA |
Short-circuit protection | yes | Overload protection | Available |
Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection for input 1, connection pattern | 00991155 |
Connection outlet orientation | Longitudinal | Material of pin contacts | Brass, gold-plated |
Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Tightening torque | 0.12Nm 0.4Nm |
Max. tightening torque | 0.4Nm | Mounting position | Any |
Product weight | 4.2g | Housing colour | Black |
Housing material | PA | Switching status indication | LED yellow |
Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 562019 |
Specifications may be subject to change without notice
