Product Model

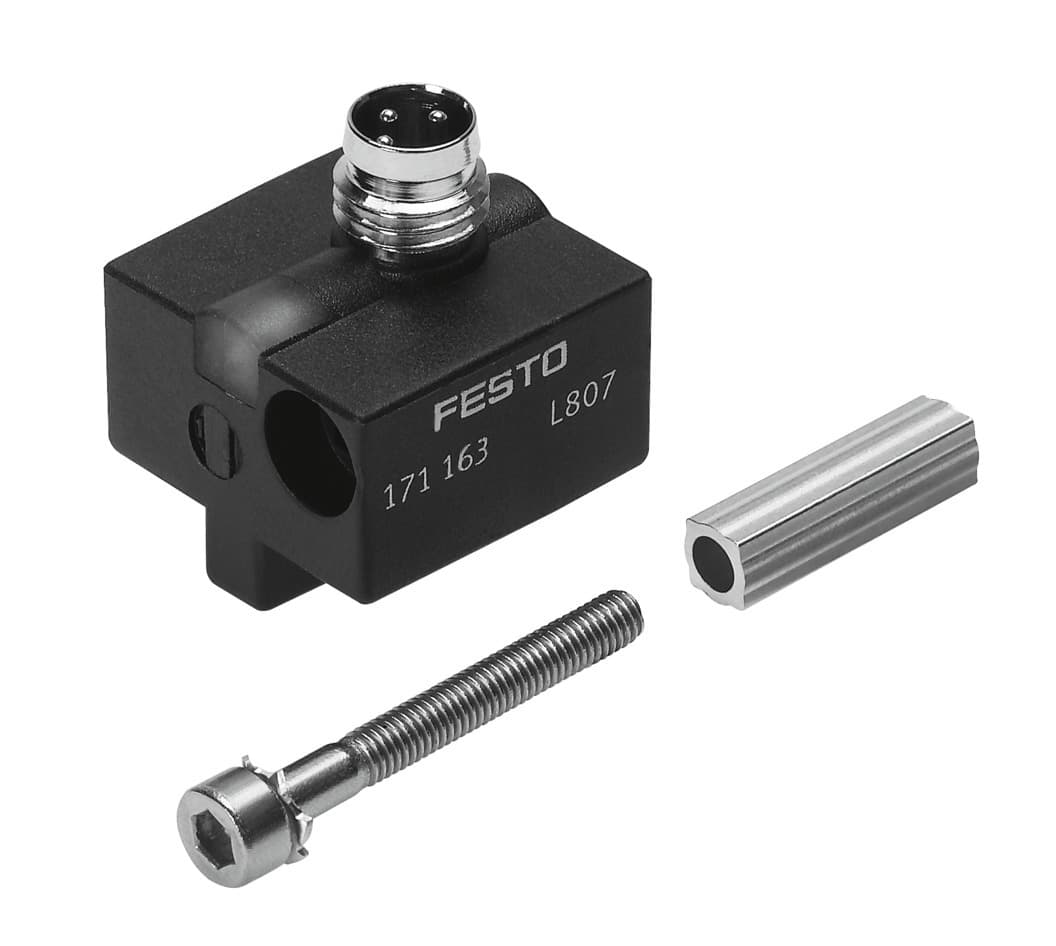

smto-8e-ns-s-led-24
Selling Points
- 1The SMTO-8E-NS-S-LED-24 proximity sensor offers a high level of accuracy with a repetition accuracy of 0.2 mm, ensuring reliable performance in various industrial applications.
- 2Equipped with magnetoresistive technology, this sensor provides precise position detection, making it ideal for drives with T-slot configurations.
- 3The sensor features an NPN output switching element, which is normally open and provides a fast switching time of less than 1.3 ms for quick response in automation systems.
- 4The SMTO-8E-NS-S-LED-24 is compliant with EU directives for EMC and RoHS, ensuring it meets the highest standards of environmental and safety regulations.
- 5Although it does not come with a mounting kit, the sensor can be easily integrated into various systems due to its compact design and M8 plug connection, making it versatile for different industrial setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991150 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
Measured variable | Position | Measuring principle | Magneto-resistive |
Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
Switching output | NPN | Switching element function | N/O contact |
On time | 1.3ms | Switch-off time | 7.3ms |
Max. switching frequency | 130Hz | Max. output current | 100mA |
Max. switching capacity DC | 2.8W | Voltage drop | 1.8V |
Inductive protective circuit | Adapted to MZ, MY and ME coils | Residual current | 0.15mA |
Short-circuit protection | Pulsed | Overload protection | Available |
DC operating voltage range | 10V 30V | Residual ripple | 10 % |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Transverse |
Material of pin contacts | Brass, gold-plated | Max. tightening torque plug | 0.3Nm |
Type of mounting | Clamped in T slot With accessories Can be inserted in slot from above | Tightening torque | 1Nm |
Mounting position | Any | Product weight | 12g |
Housing colour | Black | Housing material | Brass, nickel-plated TPE-U(PU) |
Switching status indication | LED yellow | Degree of protection | IP65 IP67 |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 171166 |
Specifications may be subject to change without notice
