Product Model

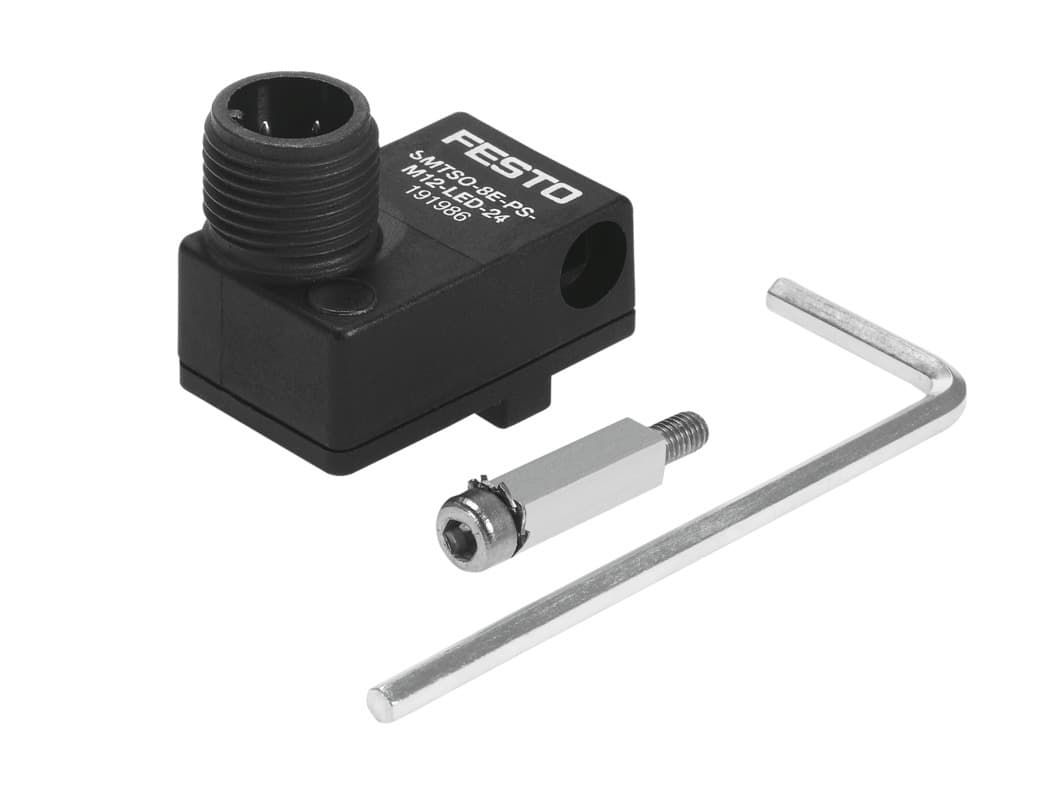

smtso-8e-ps-m12-led-24
Selling Points
- 1The SMTSO-8E-PS-M12-LED-24 offers a repetition accuracy of 0.2 mm, ensuring precise measurements in various industrial settings.
- 2Designed to withstand welding fields and resistant to welding spatter, this sensor is perfect for applications where high-temperature environments are common.
- 3Utilizing a magnetic inductive measuring principle, this sensor provides reliable and consistent performance in detecting position changes.
- 4Equipped with a PNP switching output, this sensor offers easy integration into various control systems, ensuring smooth operation and minimal signal loss.
- 5Compliant with EU directives for EMC and RoHS, as well as RCM marking, ensuring safety and regulatory compliance in your industrial setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991153 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
Application note | Support / actuator-sensor overview "The right sensor for the actuator" | Measured variable | Position |
Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
Repetition accuracy | 0.2mm | Switching output | PNP |
Switching characteristics during the welding process | Output signal freezes | Switching element function | N/O contact |
On time | 38ms | Switch-off time | 20ms |
Max. switching frequency | 14Hz | Max. output current | 200mA |
Max. switching capacity DC | 6W | Voltage drop | 3V |
Residual current | 0.01mA | Short-circuit protection | Pulsed |
Overload protection | Available | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00995573 | Connection outlet orientation | Transverse |
Material of pin contacts | Brass, gold-plated | Type of mounting | Clamped in T slot Can be inserted in slot from above |
Mounting position | Any | Product weight | 19g |
Housing colour | Black | Housing material | Wrought aluminum alloy PA TPE-U(PU) High-alloy stainless steel |
Switching status indication | LED yellow | Degree of protection | IP65 IP67 |
Resistance to interference from magnetic fields | 45 - 65 Hz Alternating magnetic field | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 191986 |
Specifications may be subject to change without notice
