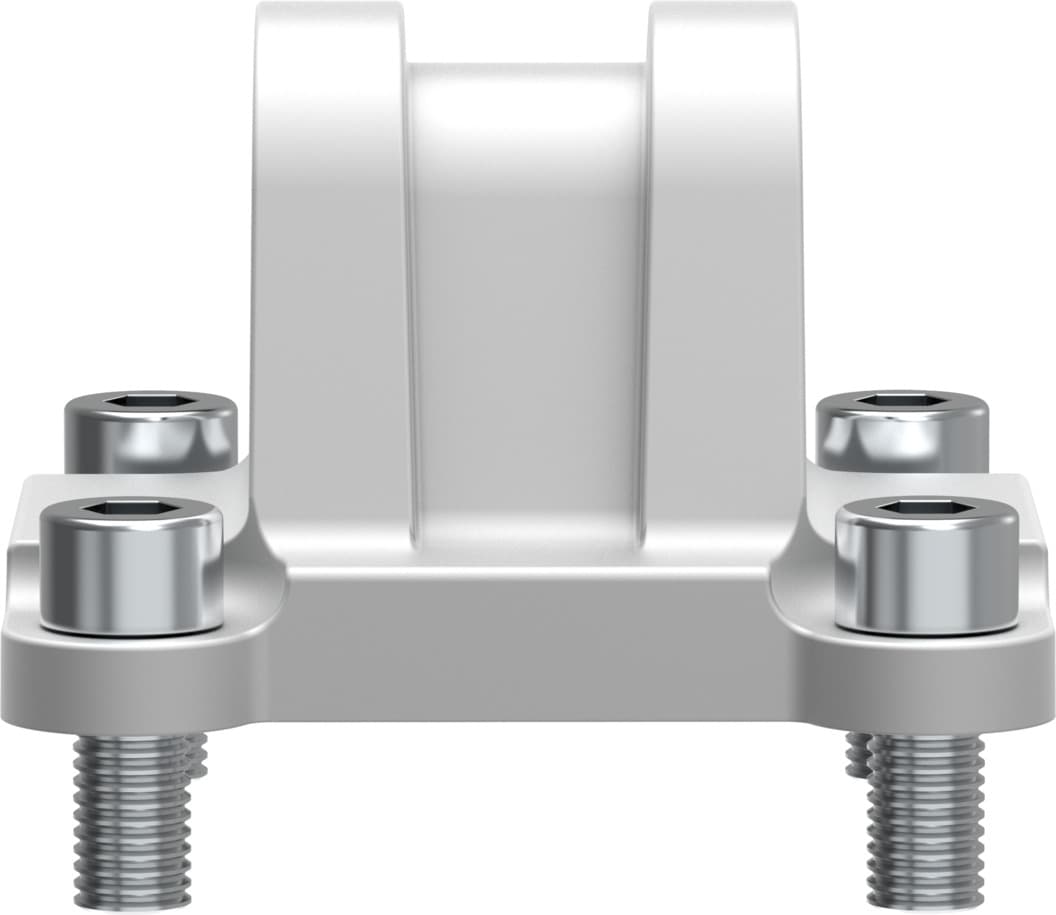

Product Model
sncl-63
Selling Points
- 1The Festo SNCL-63 swivel flange is specifically designed for use with DNC series standard cylinders, ensuring a precise fit and optimal performance in pneumatic systems.
- 2This flange is based on the ISO 15552 standard, providing compatibility with a wide range of pneumatic cylinders and mounting accessories.
- 3The SNCL-63 features a low corrosion resistance class (CRC1), making it suitable for various industrial environments and applications.
- 4Constructed from die-cast aluminum, the SNCL-63 offers durability and reliability in its material composition.
- 5With a polymer bearing and a weight of 225 grams, the SNCL-63 ensures smooth operation and easy handling in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 90°C | Product weight | 225g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Material of bearing | Polymer | Material of screws | Steel Galvanized |
Manufacturer ID | 174407 |
Specifications may be subject to change without notice
