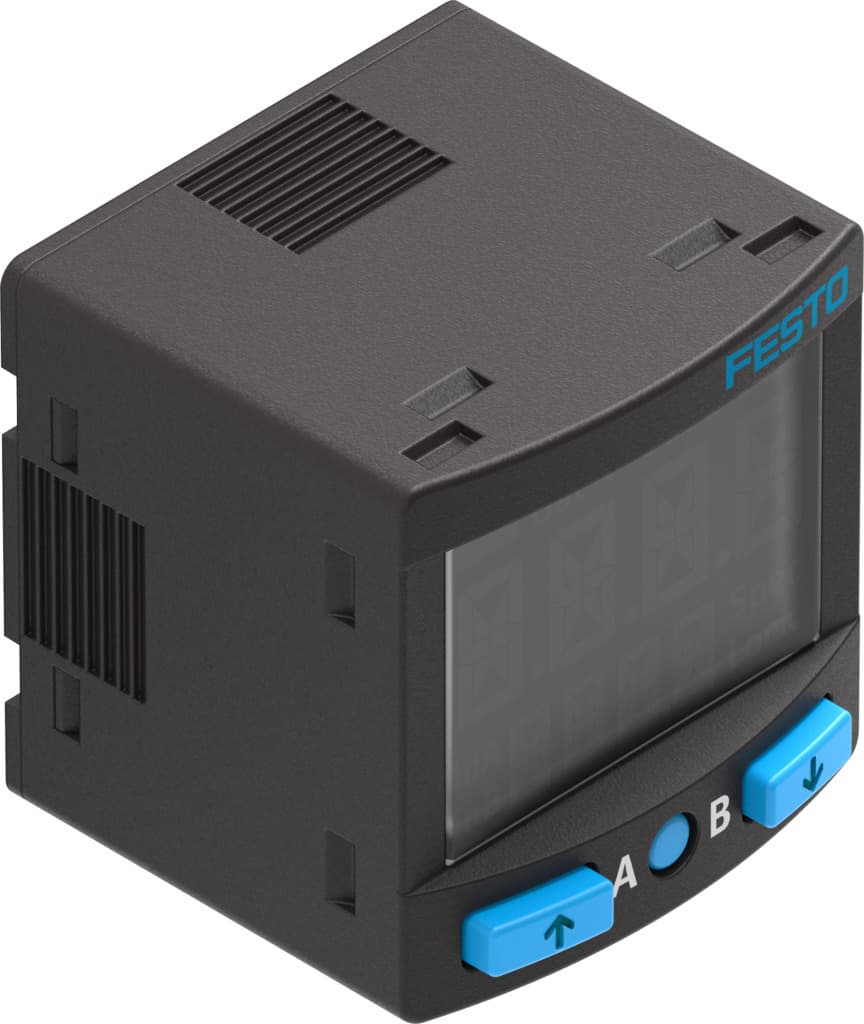

Product Model
span-
Selling Points
- 1Universal Pressure Measurement: Measures pressure and vacuum across 14 ranges.
- 2Quick Installation: Features L1 plug for fast commissioning and M8 electrical adapters for maximum flexibility.
- 3Compact Design: 30x30mm dimensions with a degree of protection IP40.
- 4Advanced Features: Parameterizable remotely using an IO-Link master and hot swap capability for easy sensor changes.
- 5Versatile Mounting Options: Front panel, manifold, threaded, and wall mounting options available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00995685 00995686 00997331 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E322346 | Note on materials | RoHS-compliant |
Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
Pressure measuring range initial value | -14.5psi | Pressure measuring range end value | 232psi |
Max. overload pressure | 5bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Accuracy in ± % FS | 1.5%FS |
Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.05%FS/K 0.1%FS/K |
Switching output | 2 x PNP or 2 x NPN switchable PNP/NPN switchable | Switching function | Window comparator Threshold value comparator Auto difference monitoring |
Switching element function | N/C contact/N/O contact switchable | Max. output current | 80mA 100mA |
Analog output | 0 - 10 V 4 - 20 mA 1 - 5 V | Max. load resistance of current output | 500Ohm |
Min. load resistance of voltage output | 20kOhm | Short-circuit protection | yes |
Protocol | IO-Link? | IO-Link?, protocol version | Device V 1.1 |
IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, SIO mode support | Yes |
IO-Link?, port class | A | IO-Link?, process data width OUT | 0 Byte |
IO-Link?, process data width IN | 2 Byte | IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
IO-Link?, minimum cycle time | 3 ms | IO-Link?, data memory required | 500byte |
DC operating voltage range | 10.8V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | Connection diagram L1J |
Electrical connection 1, number of pins/wires | 4 | Electrical connection for input 1, connection pattern | 00995428 |
Type of mounting | Front panel mounting With thread With wall/surface bracket | Mounting position | Any |
Pneumatic connection | External thread G1/8 External thread R1/8 external thread 1/8 NPT Internal thread M5 Internal thread G1/8 For pneumatic tubing outside diameter 4 mm | Product weight | 21g 46g |
Housing material | PA-reinforced | Materials in contact with the media | Wrought aluminum alloy, anodized FPM NBR PA-reinforced High-alloy stainless steel |
Display type | Illuminated LCD | Displayable unit(s) | MPa bar inH2O inHg kPa kgf/cm2 mbar mmHg psi |
Setting options | IO-Link? Teach-in Via display and pushbuttons | Protection against tampering | IO-Link? PIN code |
Setting range threshold value | 0% 100% | Setting range hysteresis | 0% 90% |
Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 8003300 |
Specifications may be subject to change without notice
