Product Model
spc11-pot-tlf
Selling Points

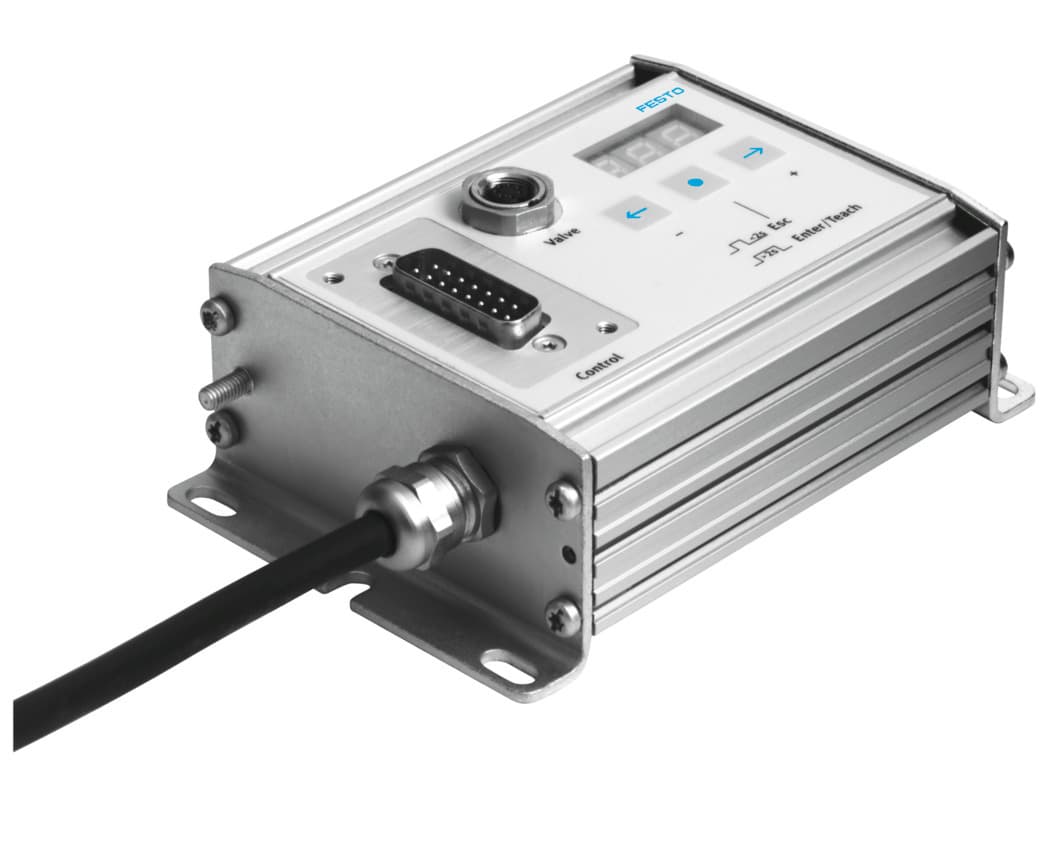

- 1The Festo SPC11-POT-TLF end position controller ensures fast and smooth travel between two fixed stops, with the option to include up to two freely selectable intermediate positions.
- 2This controller features electronic end position cushioning, significantly reducing system vibration and maintaining optimal operating behavior even with weight/load fluctuations.
- 3The SPC11-POT-TLF offers high accuracy in determining system characteristic values and storing desired end positions or intermediate positions, ensuring precise control.
- 4The controller facilitates fast and problem-free commissioning, requiring no specialists, making it a user-friendly solution for various applications.
- 5The SPC11-POT-TLF supports various input and output signals, including digital inputs and outputs, and can be connected via CAN fieldbus or other communication protocols.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Data backup | Flash memory | Control signals | Remote/teach input/left/right Input, position 1/2/3/4 Error-Ready output Output, position 1/2/3/4 |
Display | 3-digit Red color Seven-segment display | Control elements | 3 pushbuttons Touch sensitive keyboard |
Fuse protection for outputs | Electronic Max. tripping current 500 mA Via sum of all outputs | Number of digital outputs | 5 |
Number of digital inputs | 8 | Outputs type | as per IEC 61131-2 Positive logic (PNP) No galvanic isolation |
Design of inputs | as per IEC 61131-2 Positive logic (PNP) No galvanic isolation | Debounce time at inputs | 20ms |
Max. current consumption with proportional valve | 1.1A | Max. current consumption without proportional valve | 70mA |
Nominal operating voltage DC | 24V | Input current consumption | 4mA |
Current rating per output | 100mA | Permissible voltage fluctuations | +/- 25 % |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
LABS (PWIS) conformity | VDMA24364-B2-L | Relative air humidity | 0 - 95 % Non-condensing |
Degree of protection | IP65 as per IEC 60529 | Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 1 |
Ambient temperature | 0°C 50°C | Product weight | 400g |
Elec. connection of operating voltage, inputs and outputs | 15-pin SUB-D Plug | Electrical connection, proportional valve | 7-pin |
Linear potentiometer electrical connection | Form A | Cable length | 0.3m |
Manufacturer ID | 192216 |
Specifications may be subject to change without notice
