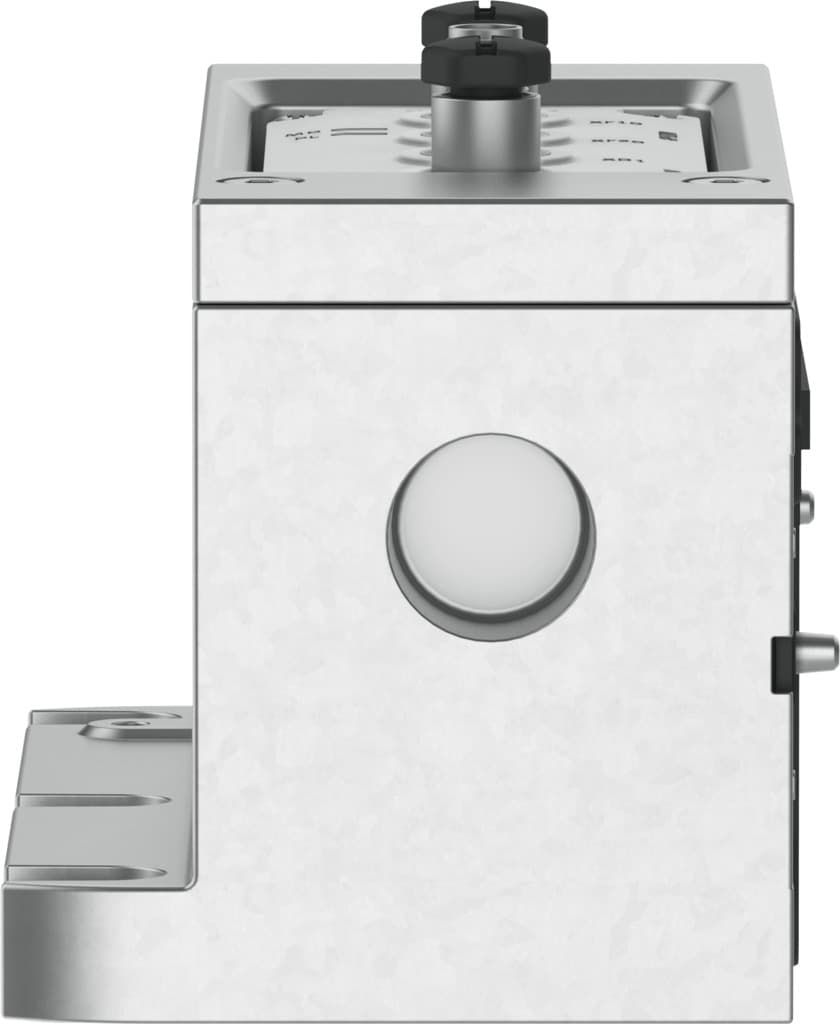

Product Model
vaba-s6-1-ap
Selling Points
- 1The VABA-S6-1-AP offers reverse polarity protection, ensuring the system remains safe and functional even in case of incorrect power supply connections.
- 2Equipped with diagnostics via LED, this interface provides real-time monitoring and troubleshooting capabilities, enhancing system reliability and efficiency.
- 3The VABA-S6-1-AP features a robust power supply system with load power supply and voltage forwarding capabilities, ensuring stable operation under various conditions.
- 4With a communication interface that supports XF10 IN / XF20 OUT protocols, this interface facilitates smooth data exchange between automation systems and valve terminals.
- 5Constructed from die-cast aluminum with a corrosion resistance class of 2, the VABA-S6-1-AP is designed to withstand harsh industrial environments and maintain its performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection position | Top | Reverse polarity protection | yes |
Diagnostics via LED | Diagnostics per module Load power supply | Diagnose per internal communication | Load switch-off Electronics/sensors overvoltage Load overvoltage Electronics/sensors undervoltage Load undervoltage |
Max. no. of valve positions | 12 | Max. no. of solenoid coils | 24 |
Module parameters | Configuration of voltage monitoring, load supply PL Response in error state | Dimensions W x L x H | 71 mm x 142 mm x 84 mm |
Fuse protection (short circuit) | Internal electronic fuse per channel | Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 34 mA |
Intrinsic current consumption at nominal operating voltage load | Typically 16 mA | Power failure buffering of load | 3ms |
Note regarding operating voltage | SELV/PELV fixed power supplies required Note voltage drop | Max. power supply | 2 x 4 A (external fuse required) |
Nominal operating voltage DC for electronics/sensors | 24V | Nominal operating voltage DC load | 24V |
Nominal operating voltage DC | 24V | Power failure buffering | 10ms |
Permissible voltage fluctuations for electronics/sensors | ± 25 % | Permissible voltage fluctuations load | ± 10% |
Power supply, function | Incoming electronics/sensors and load | Power supply, type of connection | Plug |
Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 | Power supply, number of pins/wires | 4 |
Voltage forwarding, function | Outgoing electronics/sensors and load | Voltage forwarding, connection type | Socket |
Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 | Voltage forwarding, number of pins/wires | 4 |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Storage temperature | -20°C 60°C | Relative air humidity | 5 - 95 % Non-condensing |
Protection against direct and indirect contact | PELV SELV | Degree of protection | IP65 |
Note on degree of protection | In mounted state Unused connections sealed | Ambient temperature | 5°C 50°C |
Nominal altitude of use above sea level | <= 2000 m NHN | Product weight | 712g |
Max. cable length | 50 m system communication | Communication interface, function | System communication XF10 IN / XF20 OUT |
Communication interface, connection type | 2x socket | Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
Communication interface, number of pins/wires | 4 | Communication interface, protocol | AP-COM |
Communication interface, shielding | yes | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum | Threaded sleeve material | Brass, nickel-plated |
Manufacturer ID | 8152356 |
Specifications may be subject to change without notice
