Product Model

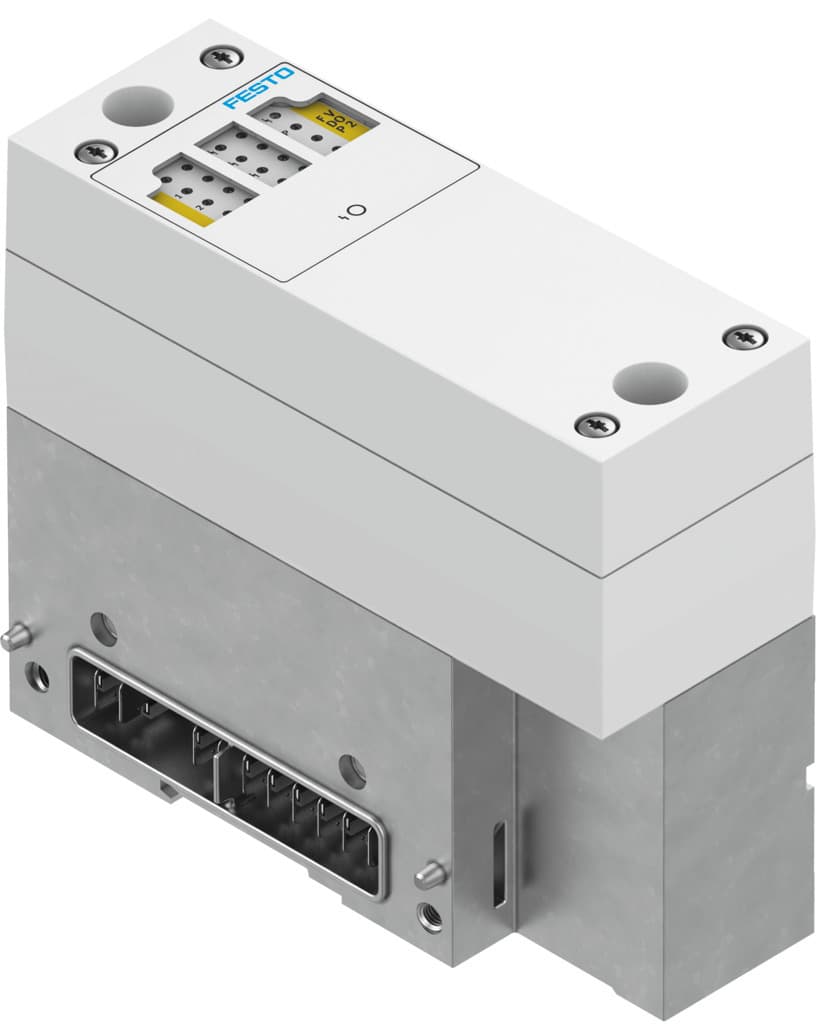

vaba-s6-1-x2-f1-cb
Selling Points
- 1Advanced Vibration Resistance: Withstands transport application tests at severity level 2 according to FN 942017-4 and EN 60068-2-6.
- 2Enhanced Shock Resistance: Passes shock tests at severity level 2 as per FN 942017-5 and EN 60068-2-27.
- 3Comprehensive Diagnostics: Includes wire break, short circuit, and undervoltage diagnostics for valves.
- 4High-Performance Operation: Supports up to 12 bistable or 24 monostable valve positions.
- 5Robust Design: IP65-rated, with internal electronic fuse protection per valve output for added reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Valve manifold interface | Type 44, VTSA-F-CB | Diagnostics | Wire break per valve coil Short circuit of pneumatic valves Undervoltage of pneumatic valves |
Max. no. of valve positions | 12 for bistable pneumatic valves 24 for monostable pneumatic valves | LED indicators | 1 group diagnostics |
Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring | Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
DC operating voltage range | 21.6V 26.4V | Intrinsic current consumption at nominal operating voltage | Typ. 110 mA for electronics with CPX-FVDA-P2 Typ. 25 mA for pneumatic valves without CPX-FVDA-P2 Typ. 45 mA for electronics without CPX-FVDA-P2 Typ. 90 mA for pneumatic valves with CPX-FVDA-P2 |
Max. power supply per channel | 0.2?A | Max. residual current per module | 4.5A |
Nominal operating voltage DC | 24V | Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Degree of protection | IP65 |
Ambient temperature | -5°C 50°C | Product weight | 734g |
Electrical actuation | Fieldbus | Electrical connection | Via CPX |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Cover material | PA | Seals material | NBR |
Material of screws | Steel | Manufacturer ID | 8068240 |
Specifications may be subject to change without notice
