Product Model

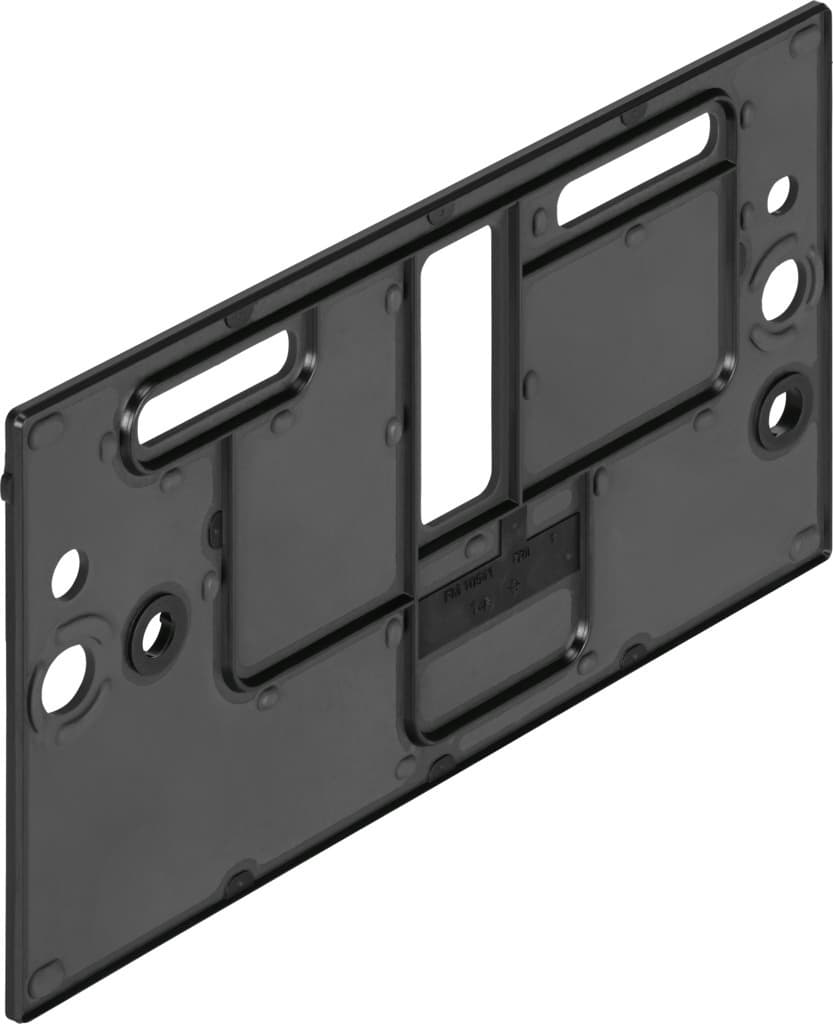

vabd-s1-1-p2-c
Selling Points
- 1The VABD-S1-1-P2-C ensures precise separation of ducts with its exhaust air function via throttle plate, based on ISO 5599-1 standards.
- 2Operates effectively within a temperature range of -10 °C to 50 °C and supports pressures up to 10 bar.
- 3Designed to handle vacuum applications, making it versatile for various pneumatic systems.
- 4Meets EU low voltage directive and is RoHS-compliant, ensuring environmental safety and regulatory compliance.
- 5Weighs only 70 grams and is made from durable steel and NBR materials, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Exhaust air function | Via throttle plate | Based on norm | ISO 5599-1 |
Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 50°C | Product weight | 70g |
Note on materials | RoHS-compliant | Separator plate material | Steel NBR |
Manufacturer ID | 8029439 |
Specifications may be subject to change without notice
