Product Model
vabe-s6-lt-c-s6-r5
Selling Points

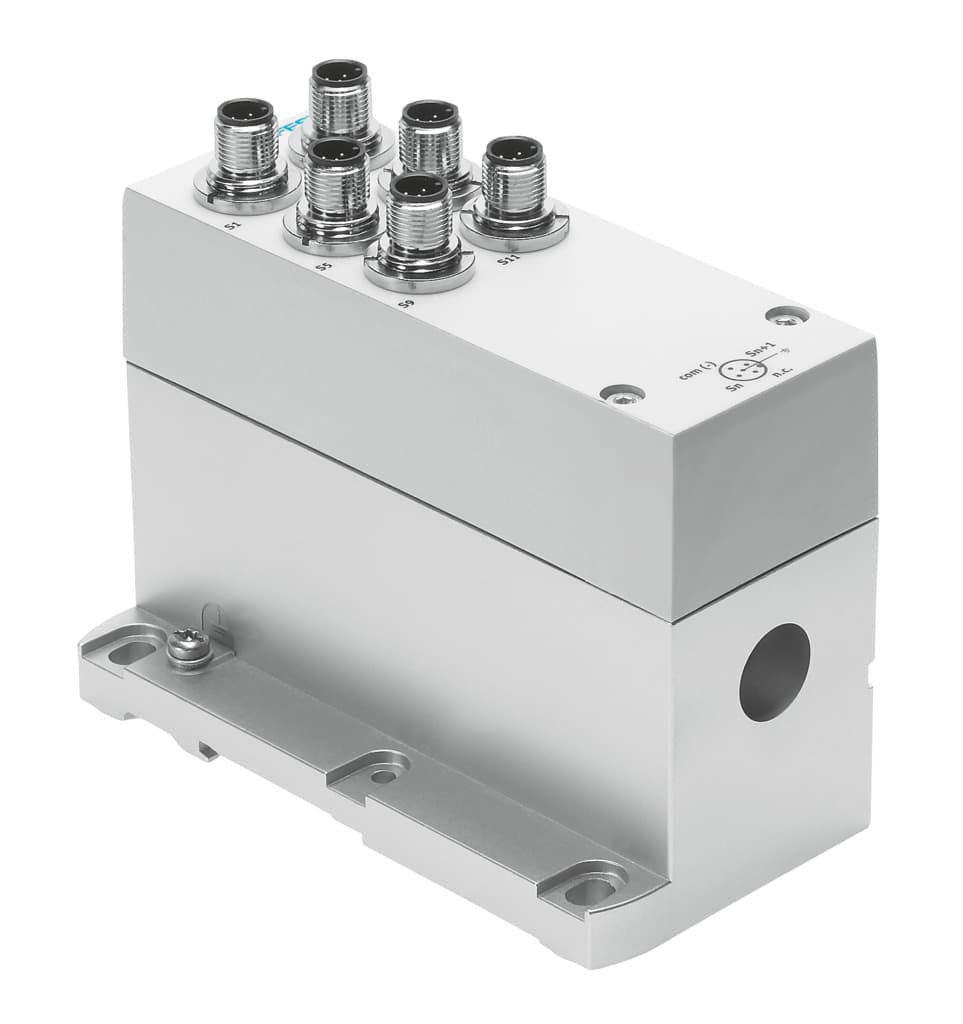

- 1The Festo VABE-S6-LT-C-S6-R5 multi-pin node offers optional mounting positions, making it versatile for various automation systems.
- 2This node supports up to 12 monostable valves and up to 6 bistable valves, ensuring efficient control in pneumatic systems.
- 3With a nominal operating voltage of 24 V DC and permissible voltage fluctuations of +/- 10%, it ensures reliable operation in diverse environments.
- 4The VABE-S6-LT-C-S6-R5 features IP65 and NEMA 4 protection, providing robust protection against dust and water, and ensuring long-lasting performance.
- 5This multi-pin node is made from die-cast aluminum with a PA cover, offering excellent corrosion resistance and durability, suitable for temperatures ranging from -5°C to 50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Max. no. of valve positions | 12 for monostable pneumatic valves 6 for bistable pneumatic valves |
Max. residual current | 10A | Nominal operating voltage DC | 24V |
Permissible voltage fluctuations | +/- 10 % | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 760g |
Number of electrical connections | 6 | Electrical actuation | Multi-pin |
Electrical connection | 5-pin M12 Plug | Cover material | PA |
Housing material | Die-cast aluminum | Manufacturer ID | 549046 |
Specifications may be subject to change without notice
