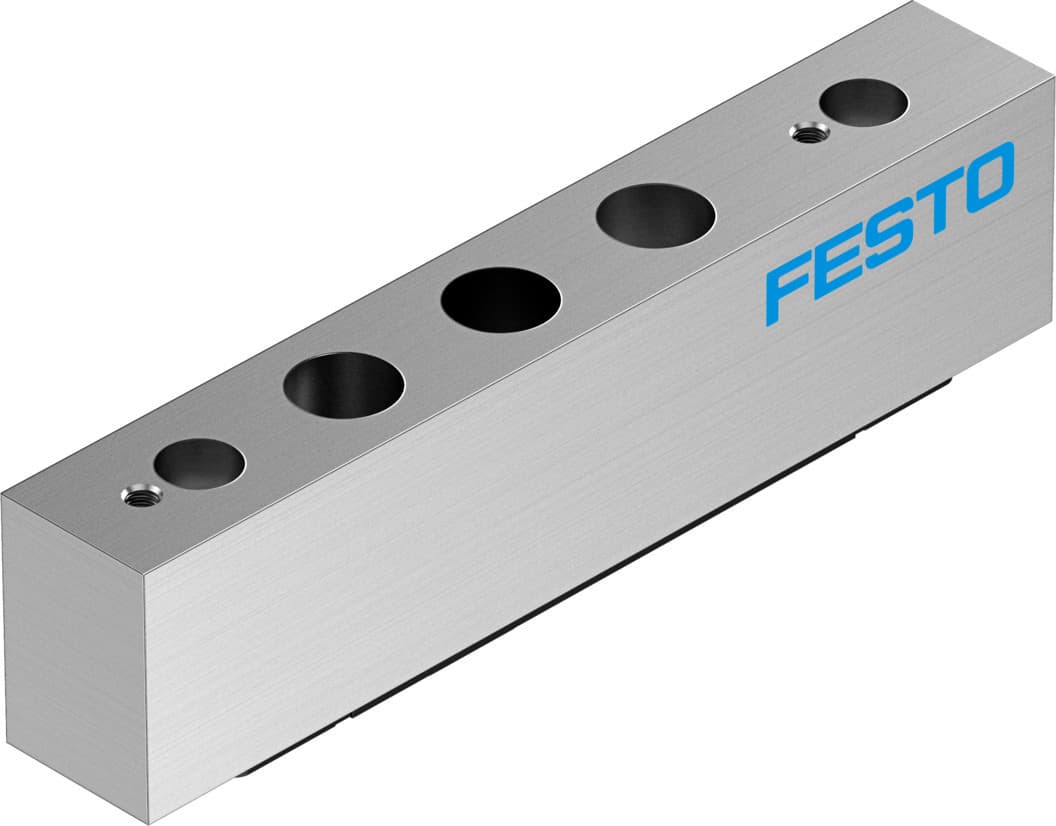

Product Model
vabf-l1-p3a3-m7
Selling Points
- 110.5 mm grid dimension for efficient valve positioning.
- 2Operating pressure range of -0.9 to 10 bar.
- 3Moderate corrosion stress with CRC 2 classification.
- 4Max. tightening torque for valve mounting is 0.45 Nm.
- 5Made from RoHS-compliant wrought aluminium alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 1 |
Symbol | 00995306 | Operating pressure | -0.9bar 10bar |
Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.45Nm |
Product weight | 220g | Pneumatic connection 1 | M7 |
Note on materials | RoHS-compliant | Plate material | Wrought aluminum alloy |
Manufacturer ID | 574592 |
Specifications may be subject to change without notice
