Product Model

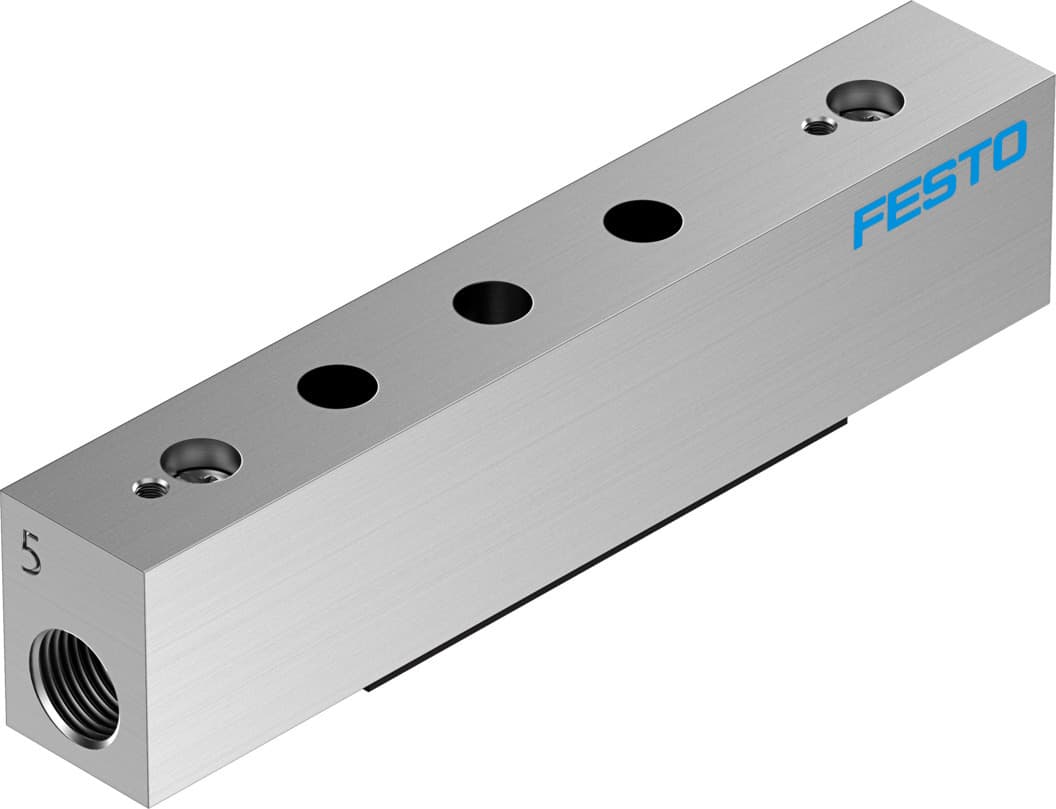

vabf-l1-p7a13-g18
Selling Points
- 1Compact design with 16mm grid dimension.
- 2Compatible with 1 valve position for precise control.
- 3Operating pressure range of -0.9 to 10 bar.
- 4Corrosion resistance classification of CRC 2 for moderate corrosion stress.
- 5RoHS-compliant and made from wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 1 |
Symbol | 00995307 | Operating pressure | -0.9bar 10bar |
Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.65Nm |
Product weight | 350g | Pneumatic connection 3 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Plate material | Wrought aluminum alloy | Manufacturer ID | 574595 |
Specifications may be subject to change without notice
