Product Model

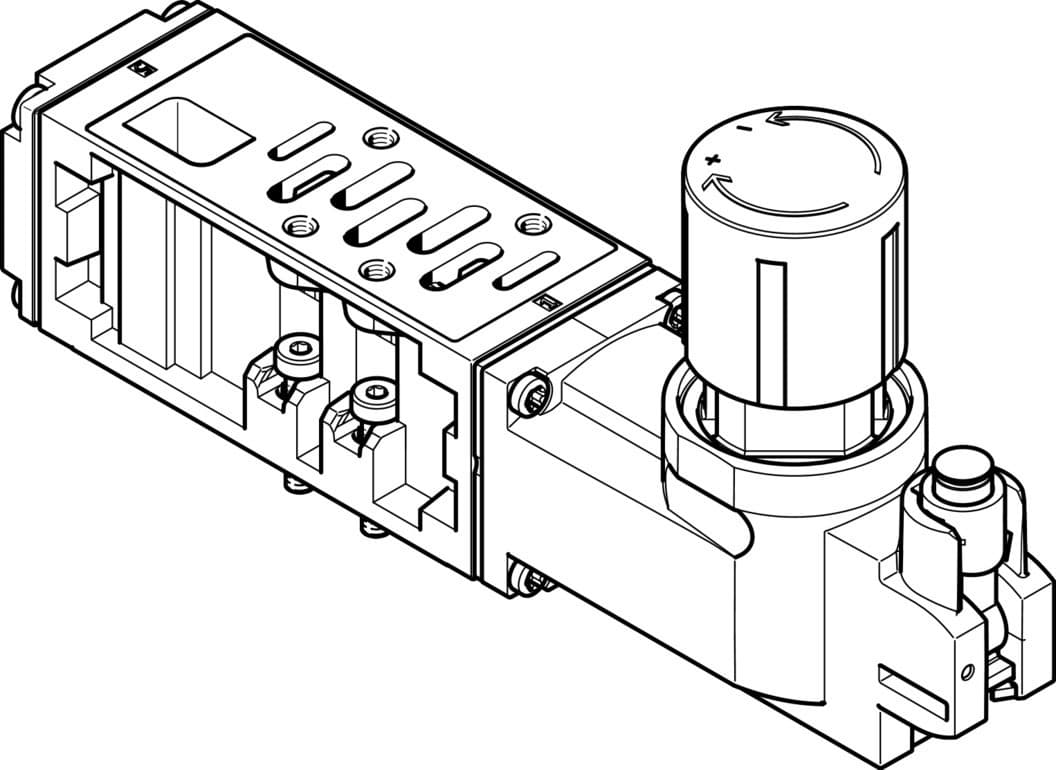

vabf-s1-2-r2c2-c-6
Selling Points
- 1The Festo VABF-S1-2-R2C2-C-6 is a high-quality pneumatic pressure regulator designed to meet the demands of various industrial applications. It ensures precise pressure control and reliability, making it an essential component in factory automation systems.
- 2This regulator is based on the standard ISO 5599-1, ensuring compatibility with a wide range of pneumatic systems. Its construction width is 42 mm, making it compact and easy to integrate into existing setups.
- 3The VABF-S1-2-R2C2-C-6 offers optional mounting positions, providing flexibility in installation. This feature allows for easy integration into different pneumatic circuits, enhancing the overall efficiency of your automation system.
- 4The product is part of Festo's extensive range of pneumatic components, including valves, cylinders, and control systems. This comprehensive portfolio ensures that you can find the perfect solution for your specific application needs.
- 5Festo's commitment to quality is evident in the VABF-S1-2-R2C2-C-6, which is built to withstand the rigors of industrial use. With a focus on reliability and durability, this regulator ensures consistent performance over millions of cycles, making it a trusted choice for industrial automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54mm | Based on norm | ISO 5599-1 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 2 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991581 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.1MPa 0.6MPa |
Pressure regulation range | 1bar 6bar | Pressure regulation range psi | 14.5psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 1230g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 555759 |
Specifications may be subject to change without notice
