Product Model

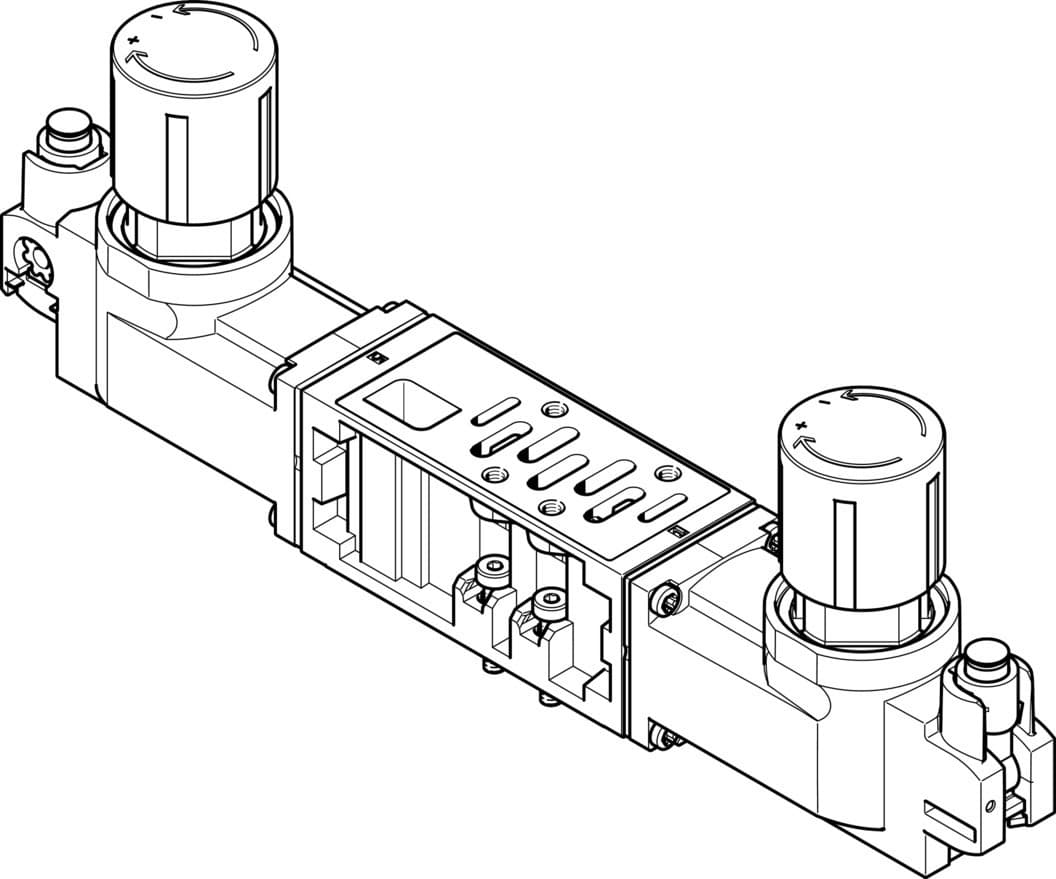

vabf-s1-2-r4c2-c-6
Selling Points
- 1The Festo VABF-S1-2-R4C2-C-6 regulator plate is designed to provide high reliability in pneumatic systems, with a service life of 24 million cycles based on ISO 19973 standards.
- 2This regulator plate is compatible with compressed air according to ISO 8573-1:2010, ensuring it operates effectively in various industrial environments.
- 3The VABF-S1-2-R4C2-C-6 features a corrosion resistance classification of CRC 0, indicating no corrosion stress, and a protection class of IP65/NEMA 4 for robust performance.
- 4It offers flexible mounting options and can be used in any assembly position, making it versatile for different pneumatic system configurations.
- 5The regulator plate supports pressure regulation from 1 to 10 bar and includes secondary exhaust functionality, ensuring precise control over output pressure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54mm | Based on norm | ISO 5599-1 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 2 and 4 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991935 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.1MPa 0.6MPa |
Pressure regulation range | 1bar 6bar | Pressure regulation range psi | 14.5psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 1990g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 555763 |
Specifications may be subject to change without notice
