Festo VABF-S2-1-R7C2-C-6 Pressure Regulator Specifications

Selling Points

1The VABF-S2-1-R7C2-C-6 pressure regulator from Festo measures 42mm in width and adheres to the ISO 5599-2 standard, ensuring compatibility with various pneumatic systems.
2This regulator is designed for pneumatic vertical stacking applications, offering a reliable solution for maintaining consistent output pressure.
3The VABF-S2-1-R7C2-C-6 features a pressure regulation range of 0.5 to 6 bar, making it versatile for different industrial automation needs.
4The product supports lubricated operation, allowing for smoother and more efficient performance in demanding environments.
5With a corrosion resistance classification of CRC 0 and protection class IP65/NEMA 4, the VABF-S2-1-R7C2-C-6 ensures durability and reliability in various operating conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	42mm	Based on norm	ISO 5599-2
Mounting position	Any	Pneumatic vertical stacking	Pressure regulator for 4 reversible

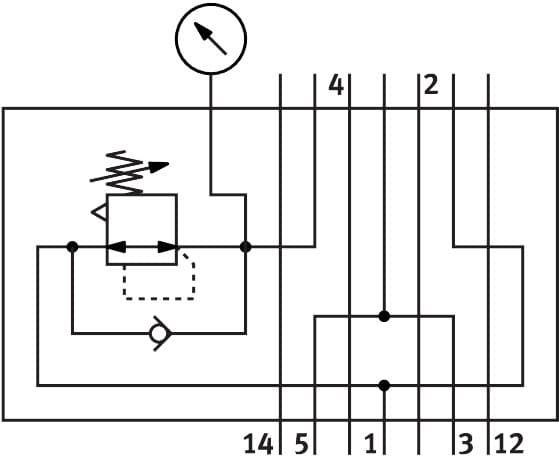

Controller function	Outlet pressure constant With secondary exhausting	Symbol	00991945
Optional pressure gauge	Possible	Pressure regulation range MPa	0.05MPa 0.6MPa
Pressure regulation range	0.5bar 6bar	Pressure regulation range psi	7.25psi 87psi
Inlet pressure 1	0.5bar 10bar	Inlet pressure 1 MPa	0.05MPa 1MPa
Inlet pressure 1 psi	7.25psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	640g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Pressure gauge connection	With retaining clamp
Material of operator panel	PA	Controller housing material	Die-cast aluminum
Manufacturer ID	546833

Specifications may be subject to change without notice
