Product Model
vabf-s2-2-a1g2-g12
Selling Points

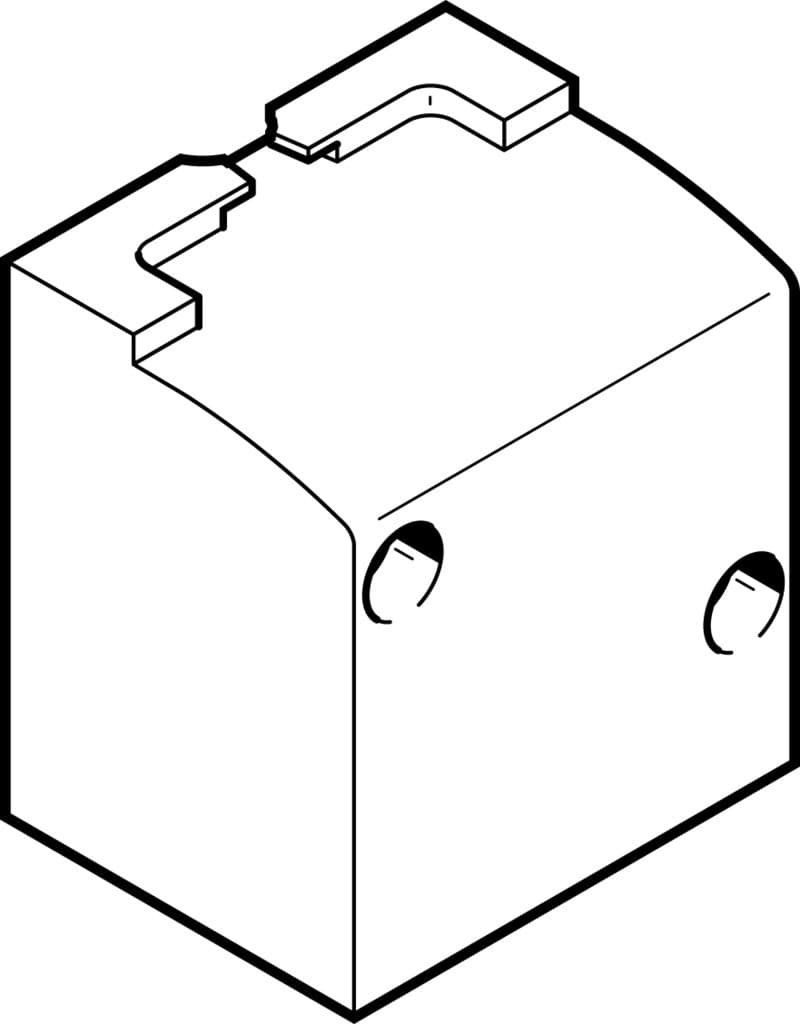

- 1The Festo VABF-S2-2-A1G2-G12 is a 90° connection plate designed to meet the ISO 5599-2 standard, ensuring high precision and reliability in pneumatic systems.
- 2This connection plate features a construction width of 52 mm, making it suitable for a variety of applications and easy to integrate into existing setups.
- 3The VABF-S2-2-A1G2-G12 operates within a pressure range of -0.09 MPa to 1 MPa, accommodating both low and high-pressure applications with ease.
- 4The product is designed for use with compressed air, adhering to ISO 8573-1:2010 standards, ensuring clean and reliable operation in various industrial environments.
- 5The connection plate is made from wrought aluminum alloy, making it durable and resistant to corrosion, with a degree of protection rating of IP65 and NEMA 4 for added reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 52mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Operating pressure | -0.9bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 359g | Type of mounting | With through-hole |
Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy |
Manufacturer ID | 555702 |
Specifications may be subject to change without notice
