Product Model

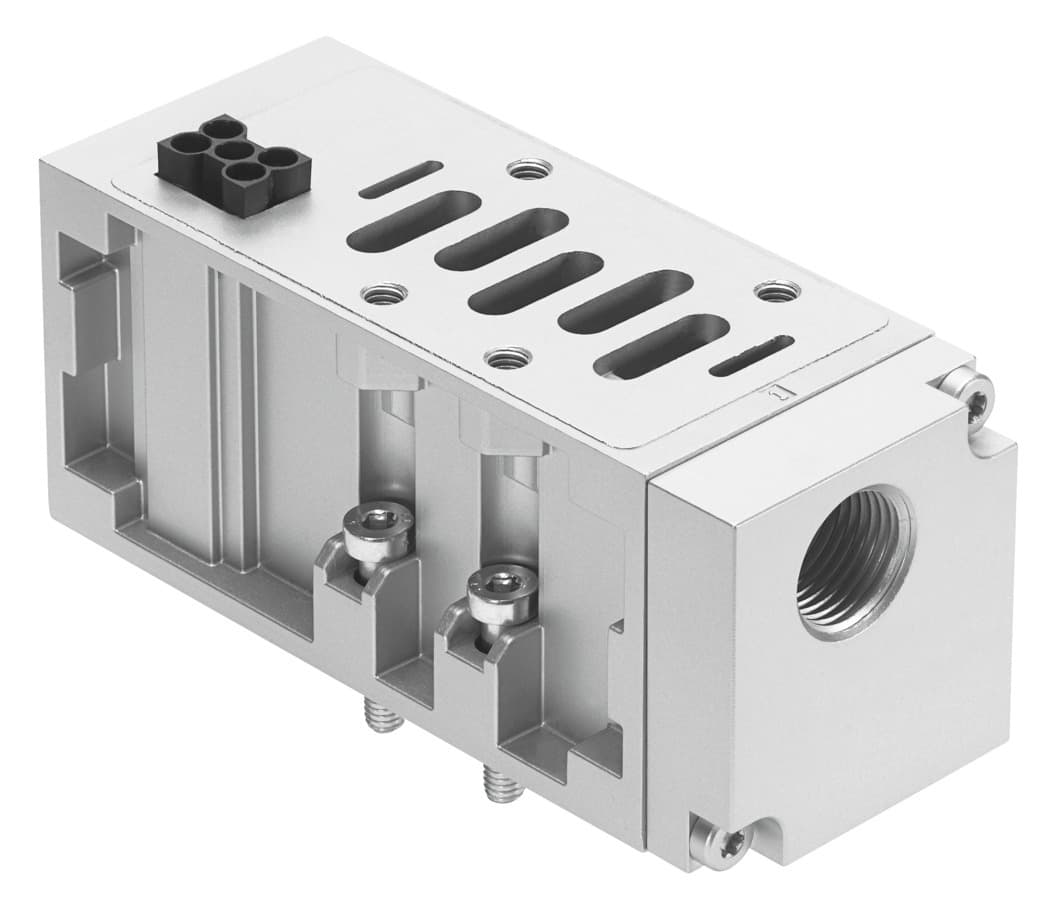

vabf-s2-2-p1a14-n12
Selling Points
- 1Compact design with a width of 54 mm, based on ISO 5599-2 standards.
- 2Versatile assembly position for any pneumatic vertical stacking application.
- 3Alternative pressure supply for 1 and 14, ensuring flexibility in system configurations.
- 4High standard nominal flow rate of 2,800 l/min for efficient operation.
- 5Robust construction with corrosion resistance classification CRC 0 and IP65/NEMA 4 protection class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 and 14 |
Symbol | 00992919 | Operating pressure | -0.9bar 10bar |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Standard nominal flow rate | 2800l/min |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 605g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 8000550 |
Specifications may be subject to change without notice
