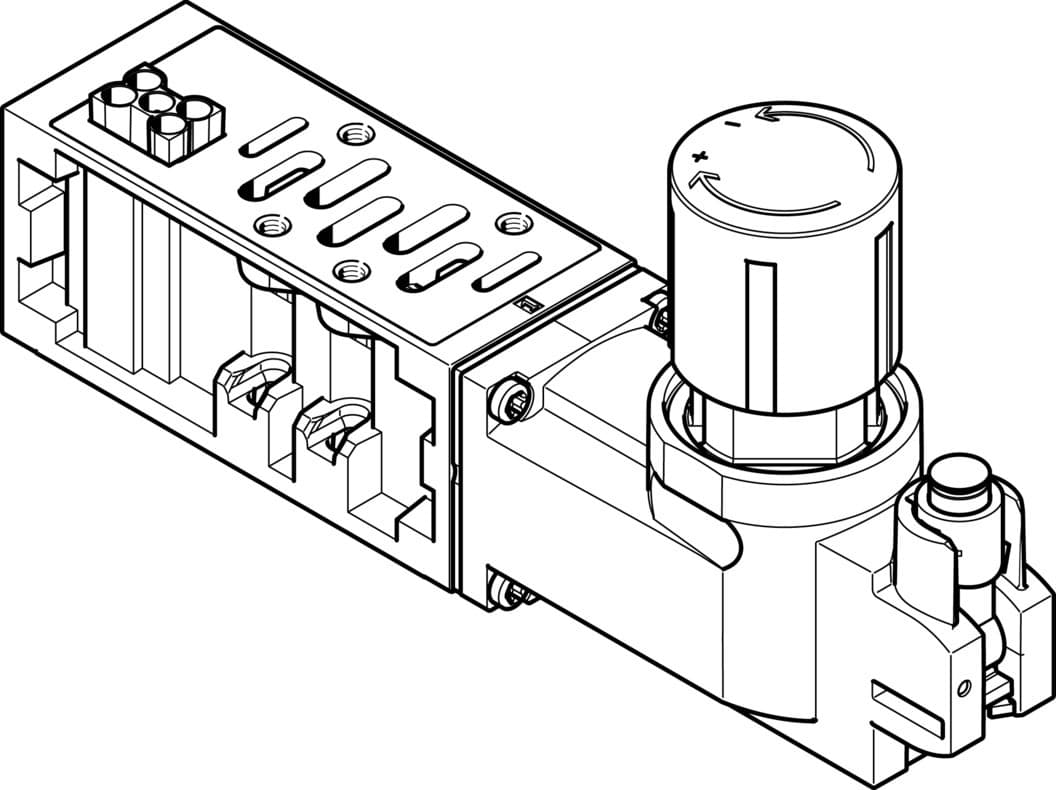

Product Model
vabf-s2-2-r1c2-c-6
Selling Points
- 1The Festo VABF-S2-2-R1C2-C-6 pressure regulator is designed to meet ISO 5599-2 standards, ensuring compatibility and reliability in various industrial settings.
- 2This regulator offers a pressure regulation range of 0.5 to 6 bar, making it versatile for different pneumatic applications.
- 3With a width of 54 mm and possible pressure gauge selection, the VABF-S2-2-R1C2-C-6 is easy to integrate into your existing automation systems.
- 4The regulator supports lubricated operation, which is subsequently required for further operation, ensuring optimal performance over time.
- 5Featuring IP65/NEMA 4 protection class and operating within an ambient temperature range of -5 to 50 °C, this regulator is durable and suitable for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 1 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00992227 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.05MPa 6MPa |
Pressure regulation range | 0.5bar 60bar | Pressure regulation range psi | 7.25psi 870psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 1190g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 555771 |
Specifications may be subject to change without notice
