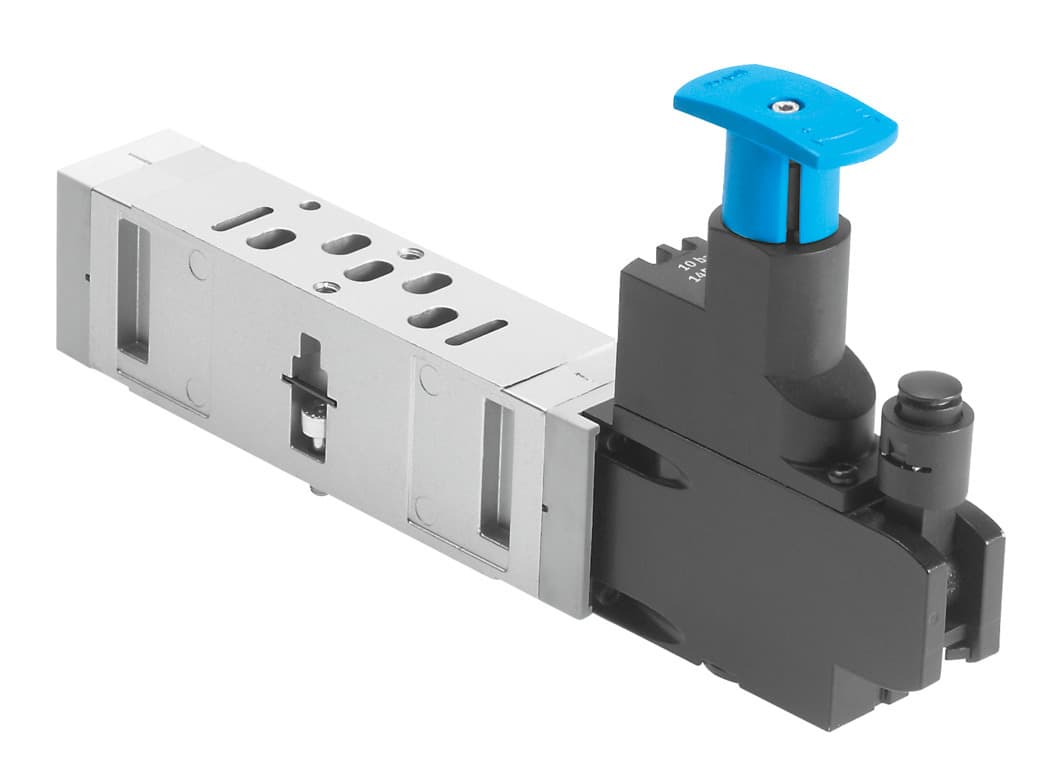

Festo VABF-S3-1-R2C2-C-6 Pressure Regulator Plate

Selling Points

1The Festo VABF-S3-1-R2C2-C-6 pressure regulator plate is designed to meet ISO 15407-1 standards, ensuring high precision and reliability in pneumatic systems.
2This regulator plate supports vertical stacking and can be mounted on any manifold block or individual subbase, offering flexibility in installation.
3With a pressure regulation range of 2 to 6 bar, it is suitable for a variety of industrial applications requiring precise pressure control.
4The VABF-S3-1-R2C2-C-6 is compatible with compressed air as per ISO 8573-1:2010 [7:4:4] and allows for lubricated operation, enhancing its durability.
5The product features a corrosion-resistant classification of CRC 0 and a protection class of IP65, ensuring it can operate in harsh environments while maintaining its performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	26mm	Based on norm	ISO 15407-1
Mounting position	Any	Pneumatic vertical stacking	Pressure regulator for 2
Controller function	Outlet pressure constant With secondary exhausting	Symbol	00991581
Optional pressure gauge	Possible	Pressure regulation range MPa	0.2MPa 0.6MPa
Pressure regulation range	2bar 6bar	Pressure regulation range psi	29psi 87psi
Inlet pressure 1	0.5bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	305g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Pressure gauge connection	With retaining clamp
Note on materials	RoHS-compliant	Material of operator panel	PA
Controller housing material	Die-cast aluminum	Manufacturer ID	543533

Specifications may be subject to change without notice
