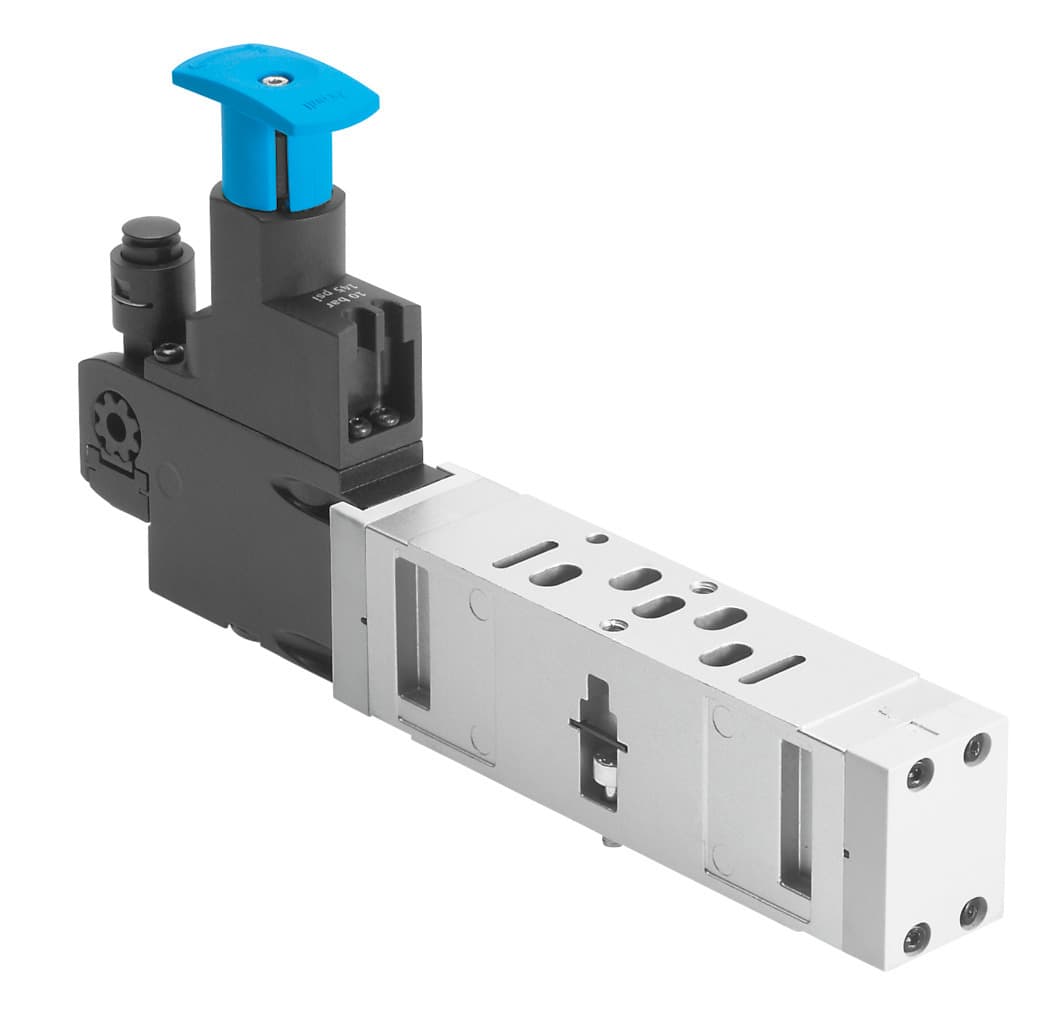

Festo VABF-S3-1-R6C2-C-10 Pressure Regulator Plate

Selling Points

1The Festo VABF-S3-1-R6C2-C-10 pressure regulator plate is designed to provide precise control over pneumatic systems, ensuring optimal performance and reliability.
2With a service life of 10 million cycles, this regulator plate is built to withstand the demands of continuous operation, making it ideal for industrial applications.
3The VABF-S3-1-R6C2-C-10 is constructed to meet the standards of ISO 15407-1, ensuring compatibility with a wide range of pneumatic systems.
4This pressure regulator plate features a vertical pneumatic linkage and supports reversible operation, offering flexibility in system design.
5The VABF-S3-1-R6C2-C-10 is available in a compact 26 mm width, making it suitable for space-constrained applications while maintaining high performance standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	26mm	Based on norm	ISO 15407-1
Mounting position	Any	Pneumatic vertical stacking	Pressure regulator for 2 reversible
Controller function	Outlet pressure constant With secondary exhausting	Symbol	00991946
Optional pressure gauge	Possible	Pressure regulation range MPa	0.05MPa 0.85MPa
Pressure regulation range	0.5bar 8.5bar	Pressure regulation range psi	7.25psi 123.25psi
Inlet pressure 1	0.5bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	305g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Pressure gauge connection	With retaining clamp
Note on materials	RoHS-compliant	Material of operator panel	PA
Controller housing material	Die-cast aluminum	Manufacturer ID	546789

Specifications may be subject to change without notice
