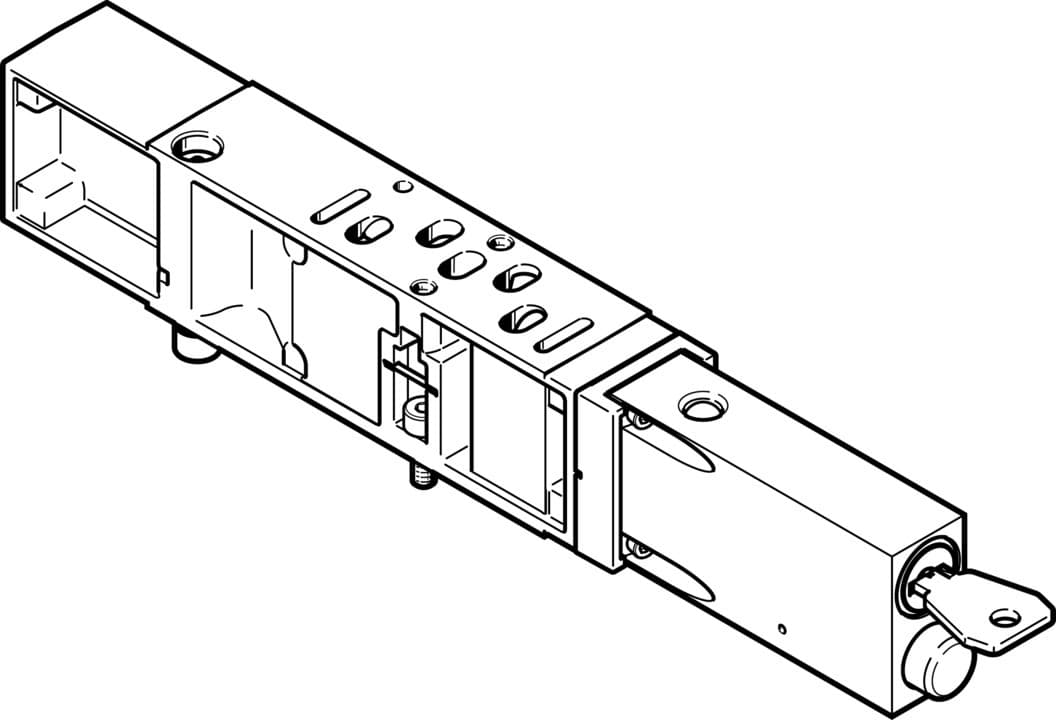

Product Model
vabf-s4-1-l1d2-c
Selling Points
- 1ISO 15407-2 Compliant: Meets international standards for precision and reliability.
- 2Optional Mounting Positions: Flexible installation options for various applications.
- 3CE Marked: Compliant with EU and UK regulations for electrical equipment.
- 4Compressed Air Operation: Suitable for use with compressed air to ISO 8573-1:2010 [7:4:4].
- 5Die-Cast Aluminium Housing: Durable and corrosion-resistant material construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Symbol | 00995593 |
Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 290g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 8001179 |
Specifications may be subject to change without notice
