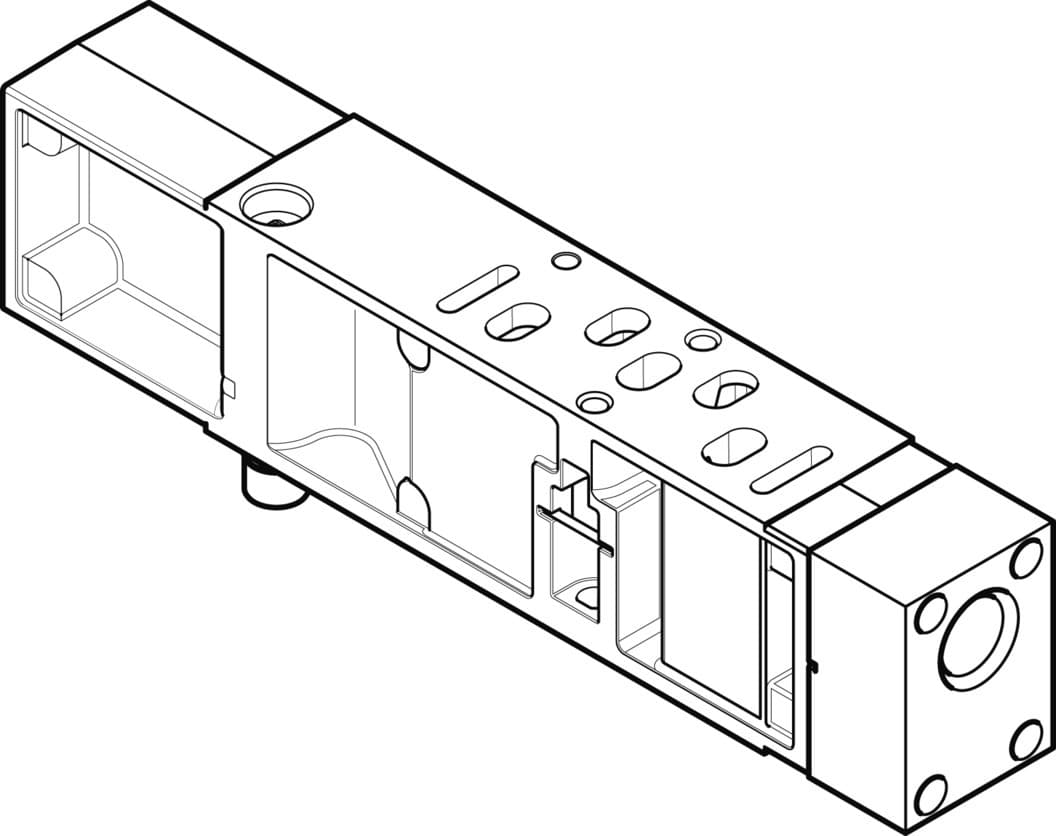

Product Model
vabf-s4-1-p1a14-n14
Selling Points
- 1Compliant with ISO 15407-2 standards
- 2Pneumatic vertical stacking capability
- 3Alternative pressure supply for ports 1 and 14
- 4900 l/min standard nominal flow rate
- 5Operating medium: Compressed air (ISO8573-1:2010)
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 and 14 |
Symbol | 00992919 | Operating pressure | 10bar |
Standard nominal flow rate | 900l/min | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 191g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pneumatic connection 1 | 1/4 NPT |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 8000690 |
Specifications may be subject to change without notice
