Product Model

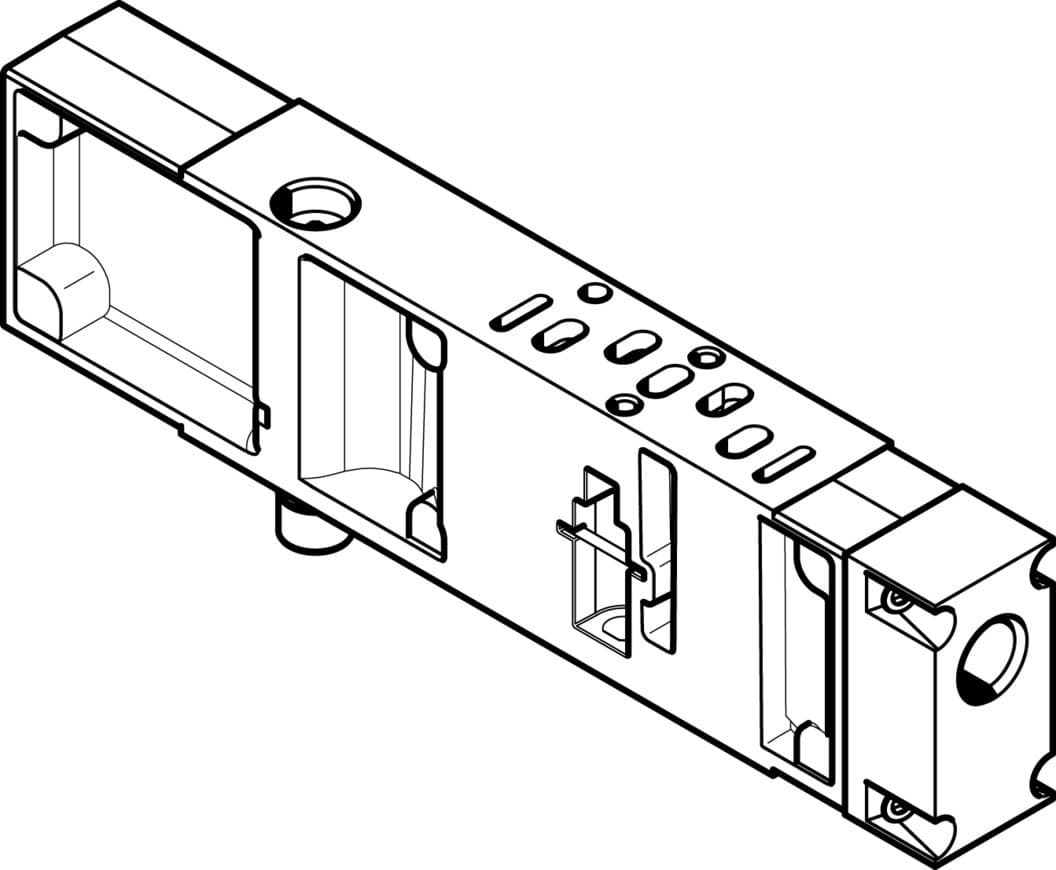

vabf-s4-2-p1a14-g18
Selling Points
- 118mm width for space-efficient installations.
- 2Optional mounting positions for flexible setup.
- 3Operating pressure up to 10 bar.
- 4Meets ISO 15407-2 standards for reliability.
- 5Compliant with EU Low Voltage Directive and UK regulations for electrical equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 and 14 |
Symbol | 00992919 | Operating pressure | 10bar |
Standard nominal flow rate | 430l/min | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 140g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pneumatic connection 1 | G1/8 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 8000693 |
Specifications may be subject to change without notice
