Product Model
vabm-b10-20s-g14-2
Selling Points

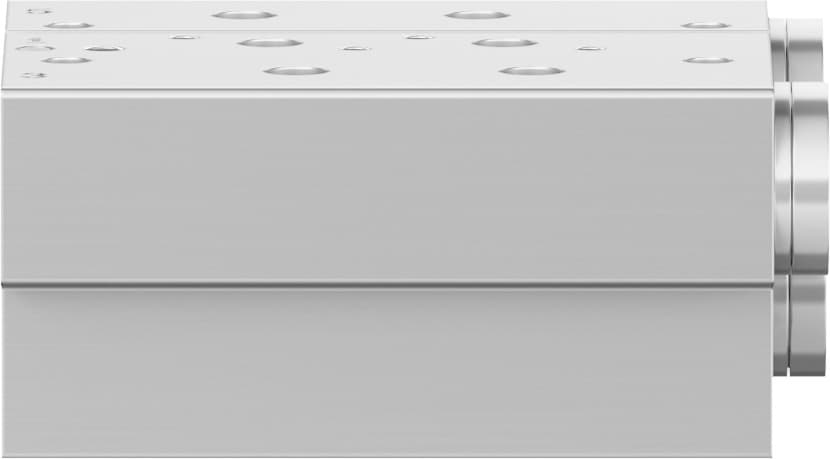

- 1The VABM-B10-20S-G14-2 manifold block is designed to be compact and space-efficient.
- 2Offers moderate corrosion resistance with a CRC class of 2.
- 3Equipped with G1/4 pneumatic connections for easy integration.
- 4Made from wrought aluminum alloy, ensuring durability and strength.
- 5Meets RoHS compliance standards, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 344g |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/4 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576417 |
Specifications may be subject to change without notice
