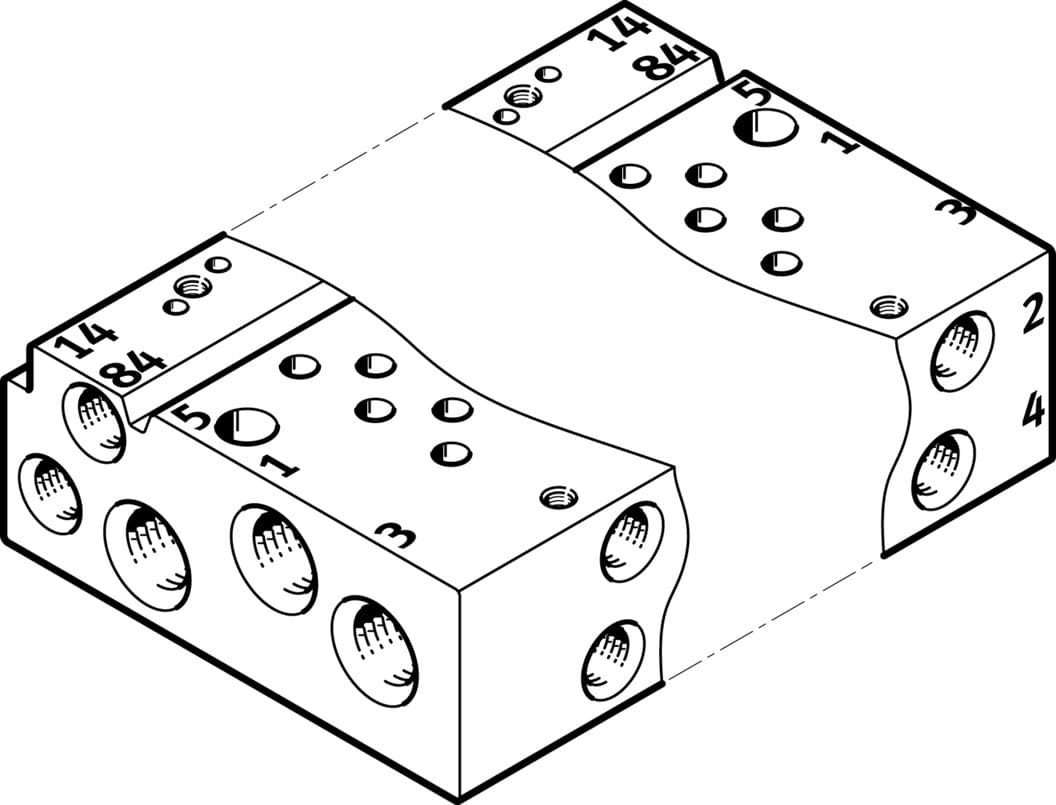

Product Model
vabm-l1-10aw-m7-2
Selling Points
- 110.5mm Grid Dimension: Precise and efficient manifold rail design.
- 216 Valve Positions: Supports multiple pneumatic connections.
- 3-0.9 to 10 BAR Operating Pressure: Versatile for various pneumatic applications.
- 4Moderate Corrosion Stress Resistance (CRC 2): Durable against moderate corrosion.
- 5RoHS-Compliant Material: Ensures environmental safety with aluminum alloy housing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
Max. tightening torque for wall mounting | 1.5Nm | Product weight | 60g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | M7 | Pneumatic connection 2 | M5 |
Pneumatic connection 3 | M7 | Pneumatic connection 4 | M5 |
Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566546 |
Specifications may be subject to change without notice
