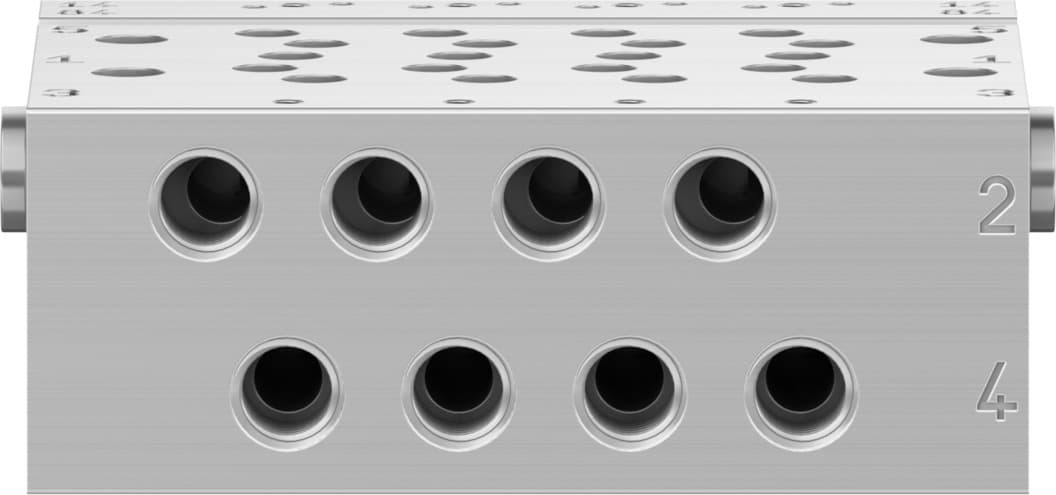

Product Model
vabm-l1-10hw-g18-3
Selling Points
- 1Corrosion Resistance Class 2: Moderate corrosion stress ensures reliable performance in demanding environments.
- 2Versatile Mounting Options: Optional mounting positions for flexible installation in various applications.
- 3High Operating Pressure: Supports operating pressures up to 1 MPa (-0.09 MPa to 1 MPa).
- 4RoHS-Compliant Materials: Made from RoHS-compliant wrought aluminium alloy for environmental sustainability.
- 5Compact Design: Lightweight design with a product weight of 135 grams for easy handling and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 135g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M7 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M7 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566607 |
Specifications may be subject to change without notice
