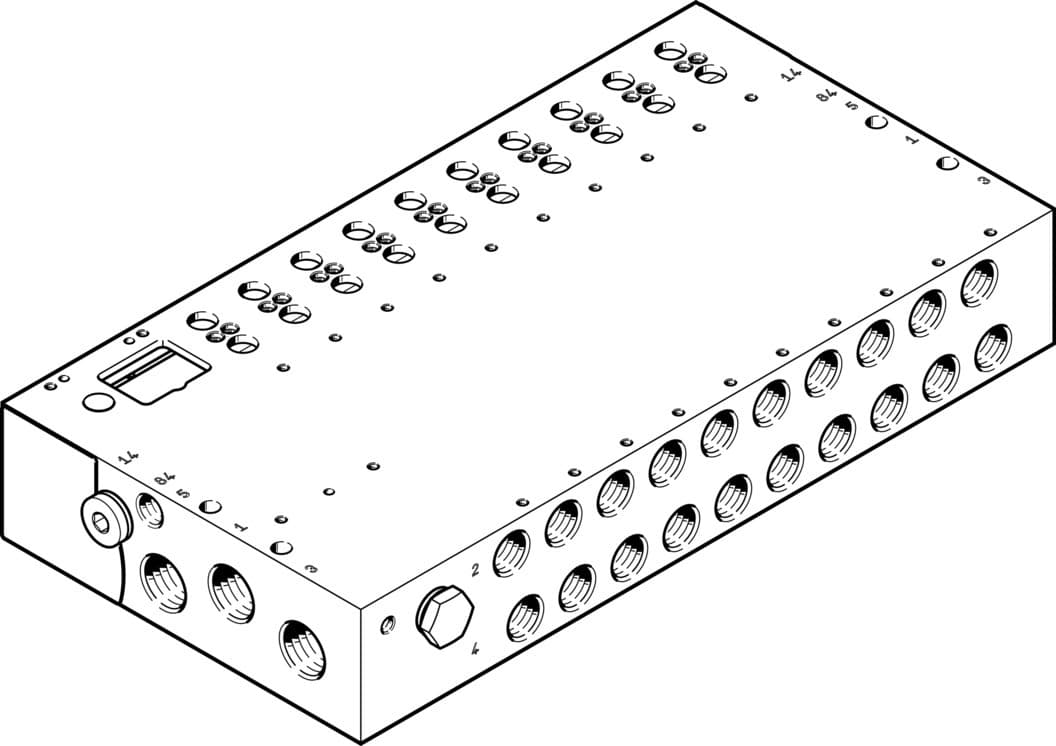

Product Model
vabm-l1-18w-g38-16-g
Selling Points
- 1Supports up to 16 pneumatic valve positions for efficient system management.
- 2Features a corrosion resistance class of 2, ensuring moderate corrosion stress.
- 3Can be assembled in any position, offering flexibility in installation.
- 4Meets RoHS standards, ensuring environmental compliance.
- 5Made from wrought aluminum alloy for durability and resistance to wear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 19mm | Mounting position | Any |
Max. no. of valve positions | 16 | Certification | c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Product weight | 3493g |
Pilot air port 12/14 | G1/8 | Pilot exhaust air port 82/84 | G1/8 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G1/4 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8004921 |
Specifications may be subject to change without notice
