Product Model

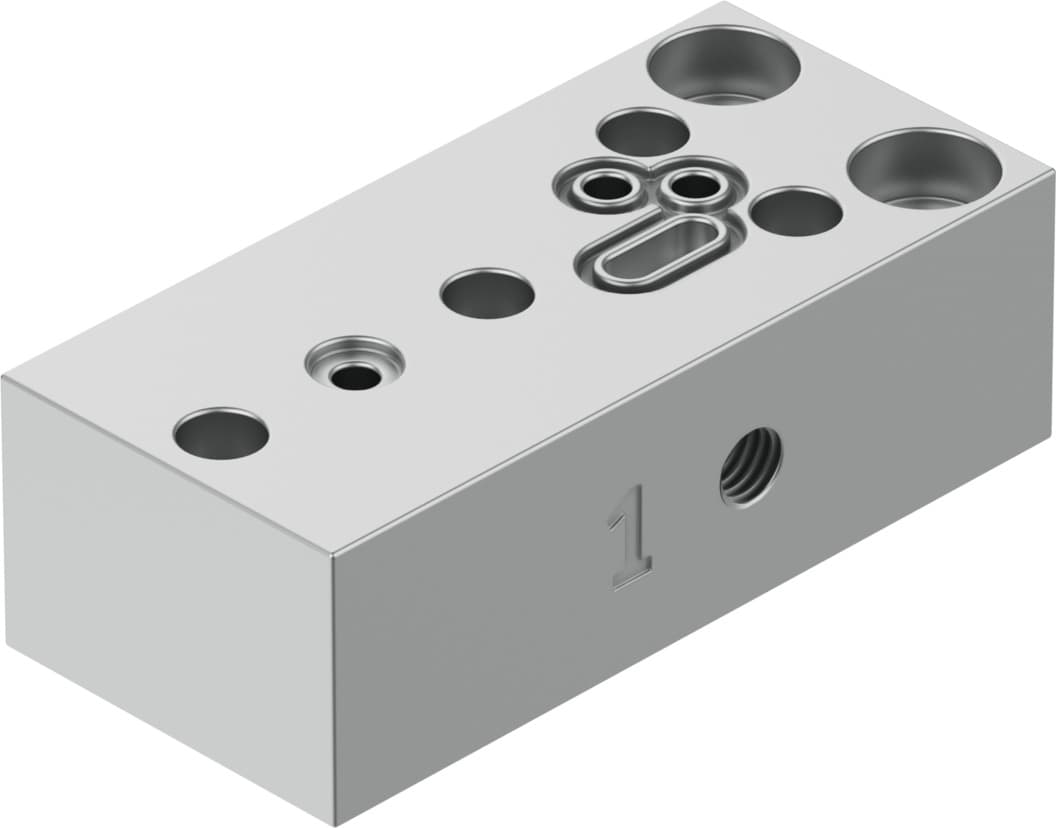

vabs-p12-s-m5-p3
Selling Points
- 1Oxygen-compatible to DIN EN 1797 for safe operation in oxygen environments.
- 2Moderate corrosion resistance class CRC 2 ensures durability in various conditions.
- 3Standard nominal flow rate of 27-28 l/min for precise control in pneumatic systems.
- 4Anodized wrought aluminum alloy construction provides strength and resistance to corrosion.
- 5Compact 25 mm width for easy integration into tight spaces in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 25mm | Mounting position | Any |
Special features | Oxygen-compatible as per DIN EN 1797 | Max. no. of valve positions | 1 |
Operating pressure | 0bar 1.7bar | Standard nominal flow rate | 27l/min |
Standard nominal flow rate 2-3 | 28l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [5:3:1] Inert gas Oxygen |
Information on operating and pilot media | Operation with oil lubrication not possible Maximum particle size 5 μm | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -20°C 70°C |
Temperature of medium | -20°C 60°C | Relative air humidity | 0 - 70 % Non-condensing |
Degree of protection | IP00 | Note on degree of protection | In mounted state |
Ambient temperature | -20°C 70°C | Product weight | 55g |
Type of mounting | With through-hole | Pneumatic connection 1 | M5 |
Pneumatic connection 2 | M5 | Pneumatic connection 2S | M5 |
Pneumatic connection 3 | M5 | Pneumatic connection 5 | M5 |
Note on materials | RoHS-compliant | Material of sub-base | Wrought aluminum alloy, anodized |
Manufacturer ID | 8068637 |
Specifications may be subject to change without notice
