Product Model

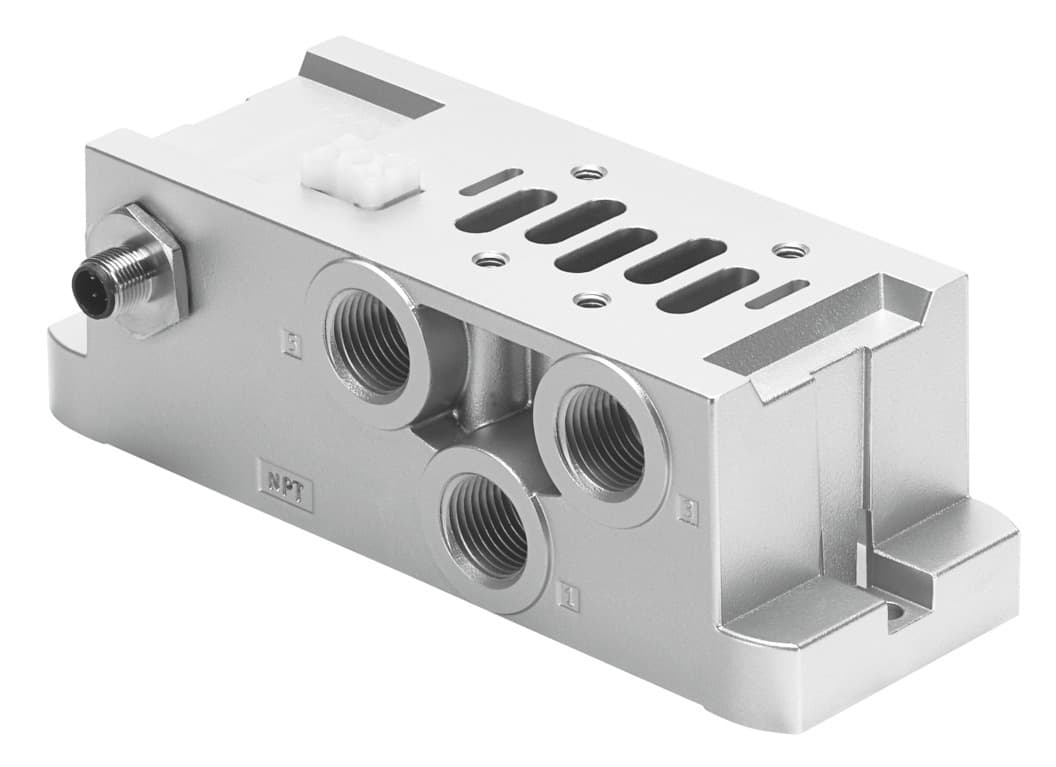

vabs-s2-2s-g12-b-r3
Selling Points
- 1The Festo VABS-S2-2S-G12-B-R3 sub-base features a compact construction width of 52 mm, ensuring efficient use of space in your industrial setup.
- 2This sub-base is built to last, with a robust die-cast aluminum connecting plate that provides excellent corrosion resistance and durability.
- 3The internal pilot air supply and operating pressure range of -0.9 to 10 bar make it highly versatile for a variety of pneumatic applications.
- 4With an IP65 degree of protection and NEMA 4 rating, the VABS-S2-2S-G12-B-R3 is designed to withstand harsh environments and ensure reliable operation.
- 5The sub-base is compatible with compressed air to ISO 8573-1:2010 [7;4;4] standards, ensuring consistent performance in your pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 52mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pilot air supply port | Internal |
Operating pressure | -0.9bar 10bar | DC operating voltage range | 24V |
Surge resistance | 0.8kV | Current rating at 40° C | 2A |
Contamination level | 3 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 In mounted state |
Ambient temperature | -5°C 50°C | Product weight | 815g |
Type of mounting | With through-hole | Note on materials | RoHS-compliant |
Material of sub-base | Cast aluminum | Manufacturer ID | 555645 |
Specifications may be subject to change without notice
