Product Model
vabs-s4-1s-g14-b-r3
Selling Points

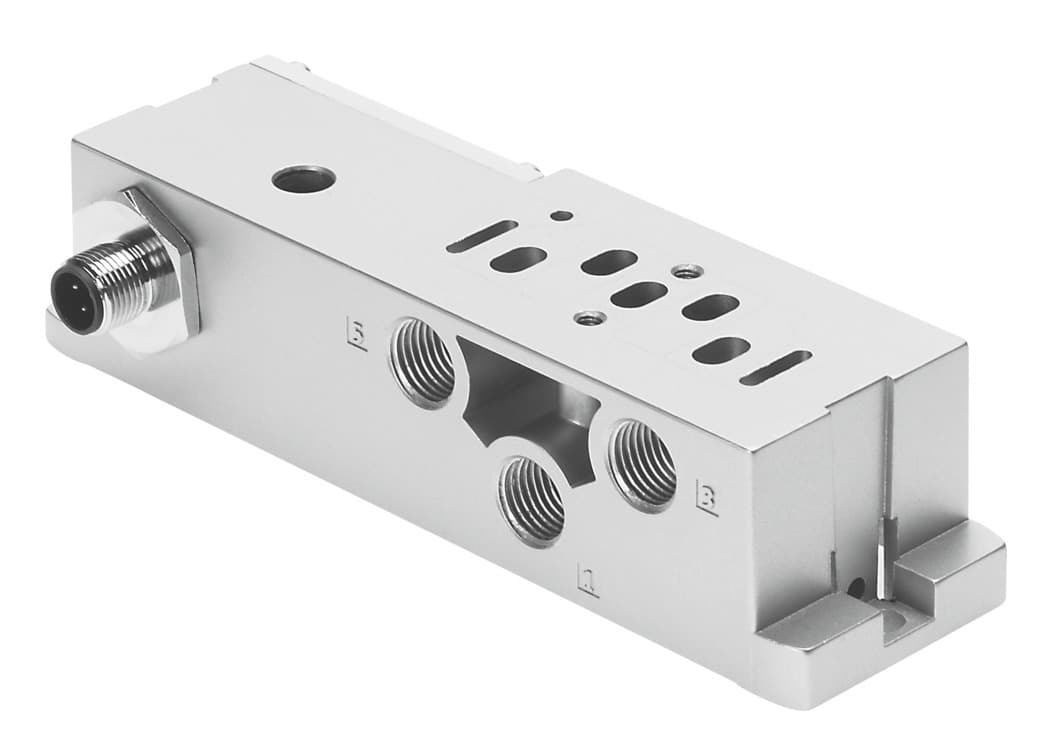

- 1The Festo VABS-S4-1S-G14-B-R3 subbase features a 26mm wide ISO 15407-2 port pattern, making it versatile for various applications.
- 2This subbase supports internal pilot air supply and operates within a pressure range of -0.9 to 10 bar, ensuring reliable performance.
- 3The VABS-S4-1S-G14-B-R3 is designed for any assembly position, offering flexibility in installation and use.
- 4It is constructed from die-cast aluminum, ensuring high corrosion resistance and durability.
- 5The subbase is compliant with ATEX and EU directives, making it suitable for hazardous environments and meeting stringent safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Pilot air supply port | Internal |
Operating pressure | -0.9bar 10bar | DC operating voltage range | 24V |
Surge resistance | 0.8kV | Current rating at 40° C | 2A |
Contamination level | 3 | CE marking (see declaration of conformity) | As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC acc. to UK EX instructions To UK RoHS instructions | Explosion protection certification outside the EU | EPL Gc (GB) |
Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) | ATEX category gas | II 3G |
Type of ignition protection for gas | Ex ec IIC T3 Gc X | Explosion group of assembly | IIC |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. surface temperature of assembly | T3 | Degree of protection | IP65 NEMA 4 In mounted state |
Ambient temperature | -5°C 50°C | Product weight | 302g |
Type of mounting | With through-hole as per ISO 15407-2 | Note on materials | RoHS-compliant |
Material of sub-base | Die-cast aluminum | Manufacturer ID | 541069 |
Specifications may be subject to change without notice
