Product Model

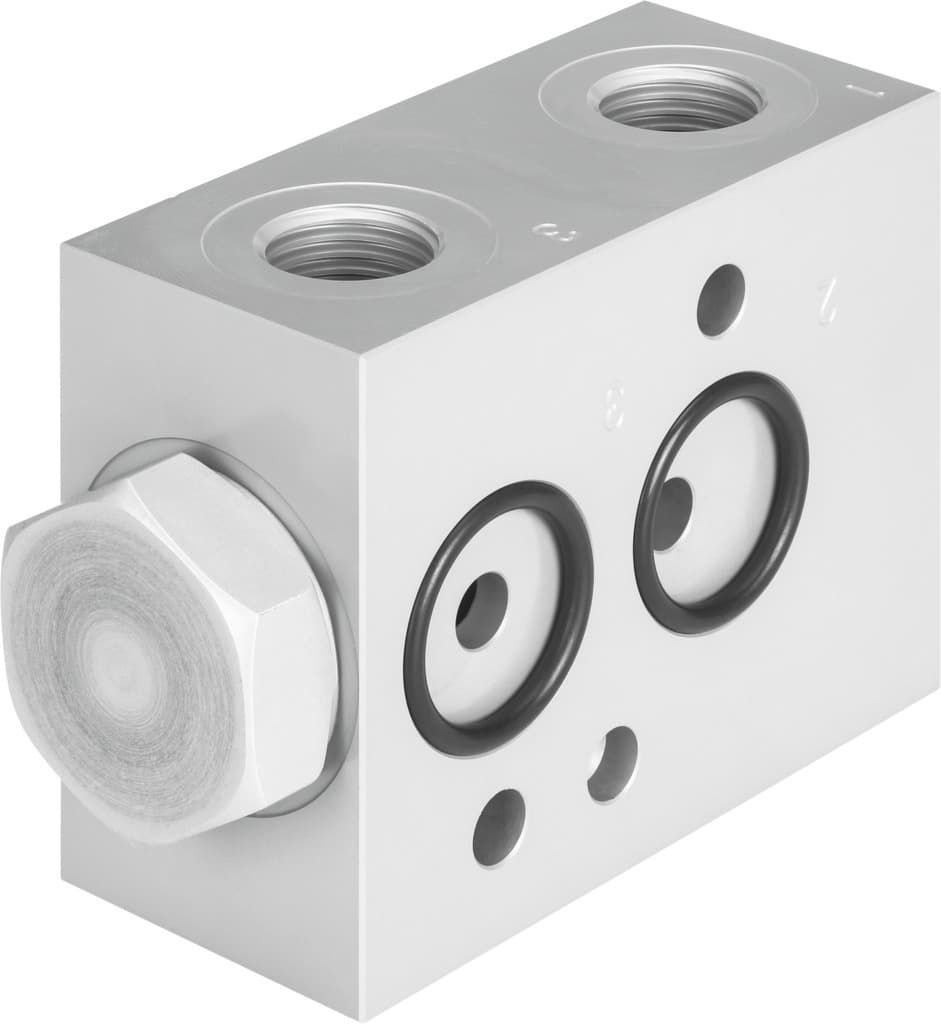

vabs-s7-be-b-g14-v14
Selling Points
- 1The VABS-S7-BE-B-G14-V14 sub-base operates at pressures ranging from 0.2 MPa to 0.8 MPa, making it suitable for demanding pneumatic applications.
- 2This sub-base is certified for use in ATEX zones 1, 2, 21, and 22, ensuring safe operation in potentially explosive environments.
- 3Made from ematal-coated aluminum with NBR seals, this sub-base offers high corrosion resistance (CRC class 4) and durability.
- 4With a flow rate of 2.2 m³/h for pressurization and 8.6 m³/h for exhaust, it ensures efficient airflow management in your system.
- 5Weighing only 250 grams, this sub-base is compact yet robust, making it easy to integrate into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Pilot air supply port | Internal |
Operating pressure | 2bar 8bar | Flow rate for piston valve pressurization | 2.2m3/h |
Flow rate for piston valve exhausting | 8.6m3/h | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
Product weight | 250g | Type of mounting | With through-hole |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Material of sub-base | Aluminum, ematal coated | Seals material | NBR |
Manufacturer ID | 2999476 |
Specifications may be subject to change without notice
