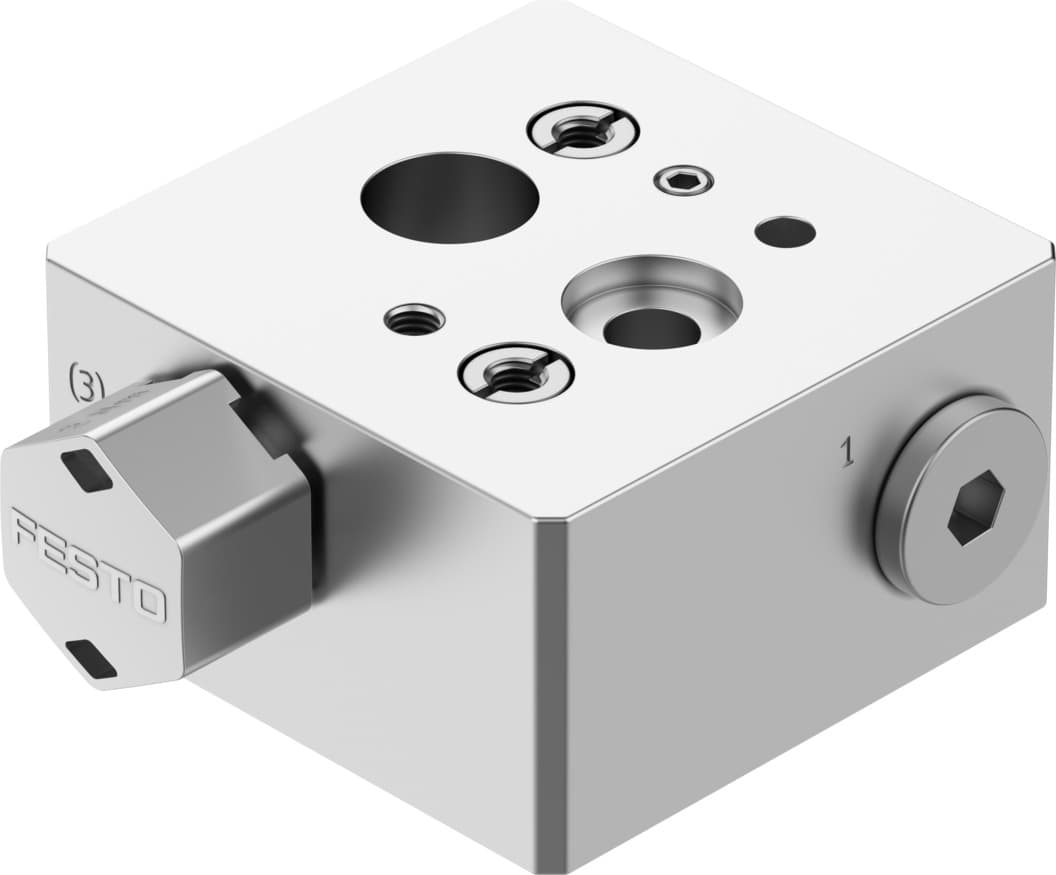

Product Model
vabs-s7-be-bs-g14-v14
Selling Points
- 1Designed with Ematal coated aluminum for very high corrosion stress (CRC 4).
- 2Meets Zone 1, Zone 2, Zone 21, and Zone 22 ATEX standards for explosion protection.
- 3Equipped with G1/4 ports and VDI/VDE 3847 (NAMUR) compliant connections.
- 4Weighs only 362 grams, making it easy to integrate into various systems.
- 5Offers excellent protection against dust and water ingress, ensuring reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Operating pressure | 0bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 In mounted state |
Product weight | 330g | Type of mounting | With through-hole and screw |
Pilot air port 12 | G1/4 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | Flange 1/4 with NAMUR port pattern | Pneumatic connection 3 | G1/4 |
Note on materials | RoHS-compliant | Material of sub-base | Aluminum, ematal coated |
Seals material | NBR | Manufacturer ID | 8072668 |
Specifications may be subject to change without notice
